4-2336678-4 | TE Connectivity
Pin header, 4 pole, pitch 2 mm, angled, black, 4-2336678-4
Order No.: 71P8981
EAN: 4099891733292
MPN:
4-2336678-4
Unit Price (€ / pc.)
1.2138 € *
Available in 5 Days: 1,100 pcs. - if ordered today
Total Price:
1.21 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2138 €
10 pcs.
1.1305 €
25 pcs.
1.0472 €
50 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale

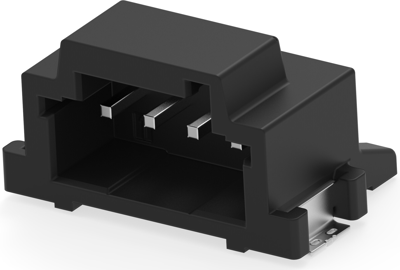

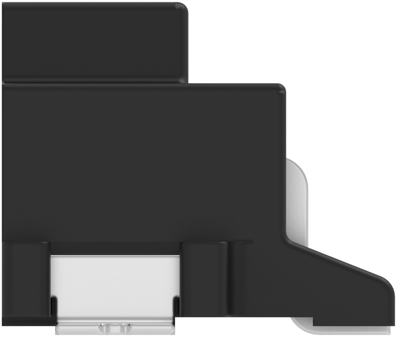

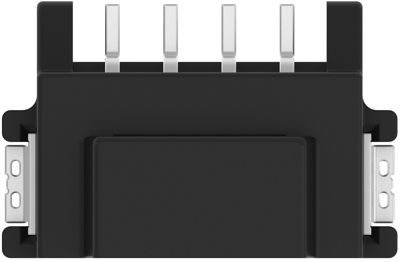

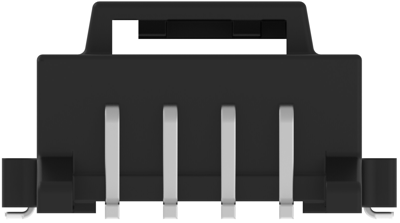

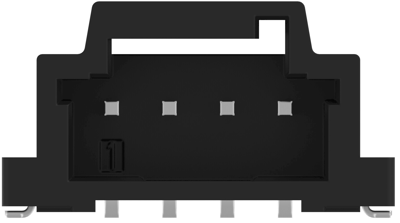

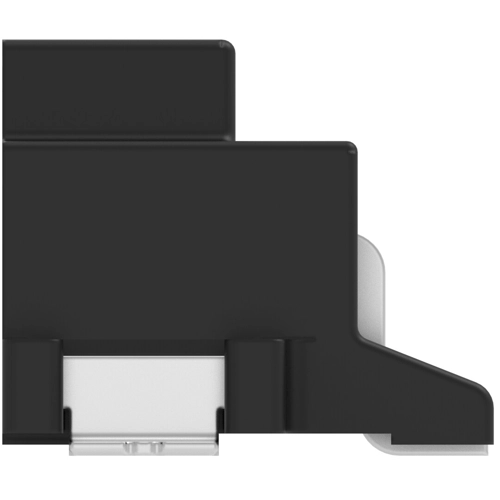

Pin header, 4-2336678-4, TE Connectivity
PCB Mount header, Right angle, Wire-to-Board, 4 Position, 2 mm Centerline, Fully shrouded, Tin, Surface mount, Signal, Black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | tin-plated | |
| Pin number | 4 pole | |
| Type of locking | Yes | |
| Rated voltage | 50 V | |
| Connection plating | tin-plated | |
| Orientation | angled | |
| Contact type | pin | |
| Grid | 2 mm | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Connection | SMD | |
| Rated current | 2 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
