4-2295321-3 | TE Connectivity
Socket header, 3 pole, pitch 2 mm, straight, green, 4-2295321-3
Order No.: 71P8943
EAN: 4099891733230
MPN:
4-2295321-3
Unit Price (€ / pc.)
2.9512 € *
Available in 5 Days: 3,395 pcs. - if ordered today
Total Price:
2.95 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9512 €
10 pcs.
2.7370 €
25 pcs.
2.5585 €
50 pcs.
2.3205 €
*incl. VAT plus shipping costs
Subject to prior sale

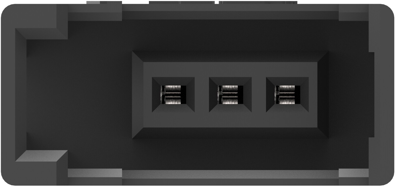

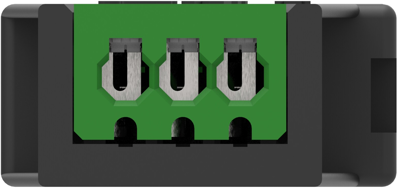

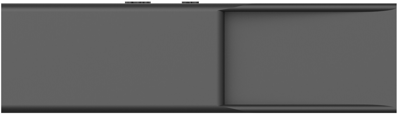

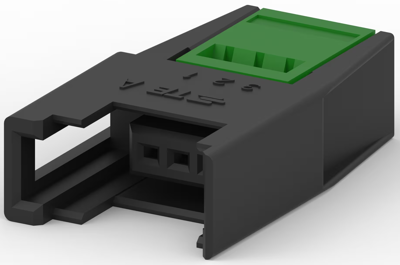

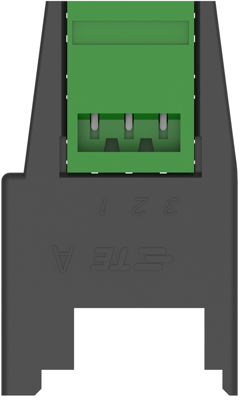

Socket header, 4-2295321-3, TE Connectivity
Standard rectangular connector, Connector assembly, Receptacle, Mating alignment, Polarization mating alignment type, Mating retention, Crimp.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | green | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Rated current | 3 A | |
| Grid | 2 mm | |
| Connection plating | tin-plated | |
| Pin number | 3 pole | |
| Version | socket header | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | socket | |
| Rated voltage | 32 V | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
