4-2271013-0 | TE Connectivity

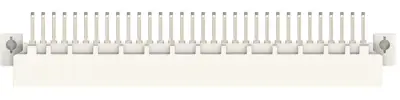

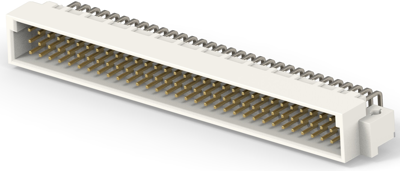

Pin header, 96 pole, pitch 2.54 mm, angled, black, 4-2271013-0
Order No.: 71P8940
EAN: 4099891733209
MPN:
4-2271013-0
Unit Price (€ / pc.)
3.4153 € *
Available in 5 Days: 5,730 pcs. - if ordered today
Total Price:
204.92 € *
Price list
Quantity
Price per unit*
60 pcs.
3.4153 €
150 pcs.
3.3558 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 4-2271013-0, TE Connectivity
PCB Mount header, Right angle, Board-to-Board, 96 Position, 2.54 mm Centerline, Unshrouded, Gold flash, Through Hole - Solder, Signal, Black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | gold-plated | |
| Pin number | 96 pole | |
| Orientation | angled | |
| Contact type | pin | |
| Grid | 2.54 mm | |
| Number of rows | 3 | |
| Additional parts | equipped | |
| Connection | solder connection | |
| Rated current | 2 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
