4-1971906-4 | TE Connectivity

Pin header, 8 pole, pitch 3.3 mm, straight, yellow, 4-1971906-4

Order No.: 34P8779
EAN: 4099889916331
MPN:
4-1971906-4

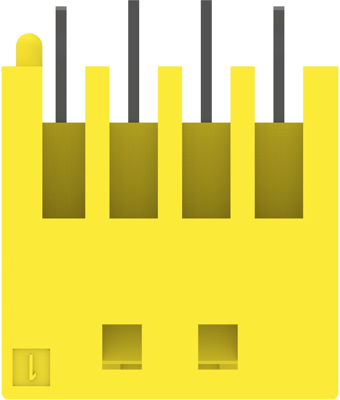

4-1971906-4 TE Connectivity PCB Connection Systems Image 1

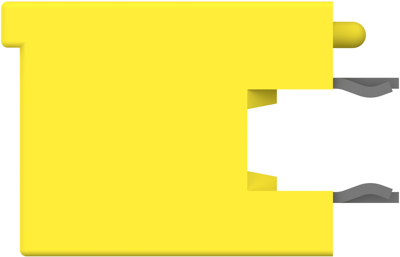

4-1971906-4 TE Connectivity PCB Connection Systems Image 2

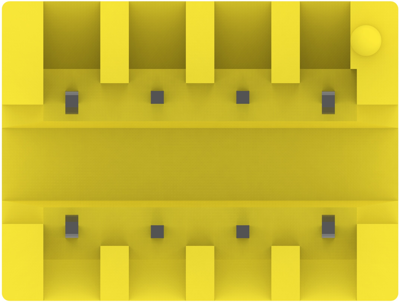

4-1971906-4 TE Connectivity PCB Connection Systems Image 3

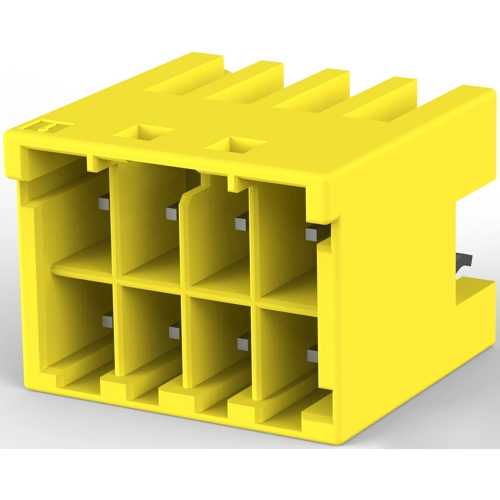

4-1971906-4 TE Connectivity PCB Connection Systems Image 4
4-1971906-4 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3070 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
15,658.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
51000 pcs.
0.3070 €

PCB Connection System, 4-1971906-4, TE Connectivity

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 8 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Tab
  • Contact Base Material: Brass
  • Housing Material: PA 66 GF
  • Housing Color: yellow
  • Orientation: straight
  • Number of positions: 8
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Rated current: 4 A
  • Centerline (Pitch): 3.3 mm
  • Row-to-Row Spacing: 5.2 mm [0.205 in]
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Version pin header
Contact type pin
Pin number 8 pole
Grid 3.3 mm
Connection solder pin
Orientation straight
Type of locking Yes
contact surface tin-plated
Connection plating tin-plated
Rated voltage 250 V
Rated current 4 A
Additional parts equipped
Number of rows 2
Breakable No
Colour yellow
Logistics
Country of origin CH
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
