4-1971905-4 | TE Connectivity

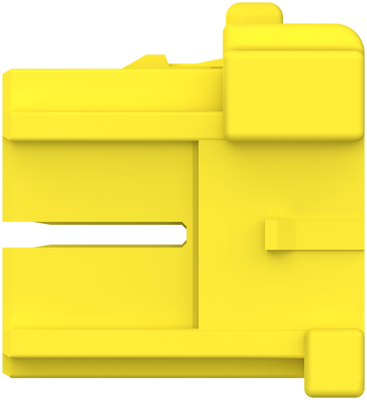

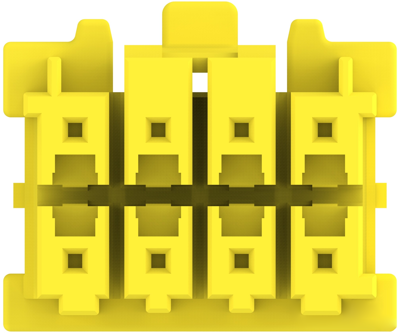

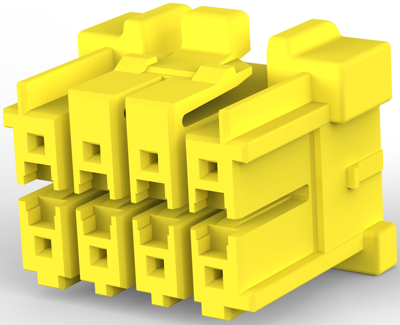

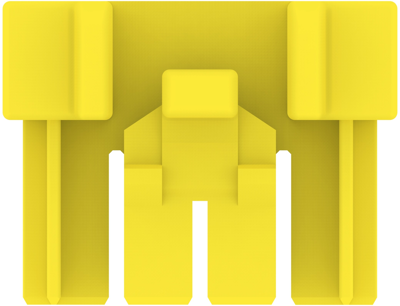

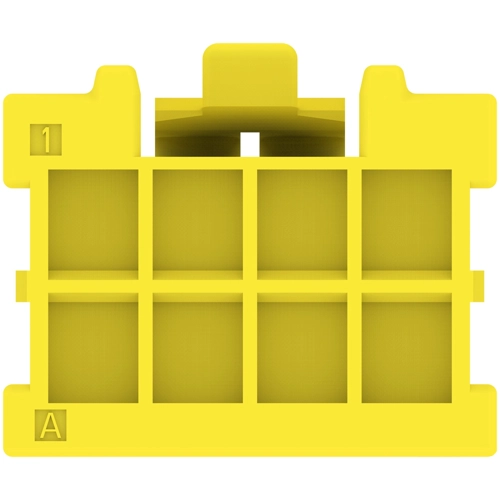

Plug housing, 8 pole, pitch 3.3 mm, straight, yellow, 4-1971905-4
Order No.: 34P8801
EAN: 4099889916508
MPN:
4-1971905-4
Unit Price (€ / pc.)
0.3451 € *
Available: 0 pcs.
Available in 5 Days: 14,796 pcs.
Leadtime: 10 Weeks **
Total Price:
0.69 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3451 €
50 pcs.
0.3094 €
100 pcs.
0.2701 €
500 pcs.
0.2297 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 4-1971905-4, TE Connectivity
Wire-to-Board, Wire & Cable, 8 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: PA 66 GF
- Housing Color: yellow
- Number of positions: 8
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Rated current: 4 A
- Centerline (Pitch): 3.3 mm
- Row-to-Row Spacing: 5.2 mm [0.205 in]
- Sealable: No
Technical specifications
| Version | Steckergehäuse | |
| Contact type | Buchse | |
| Pin number | 8-polig | |
| Grid | 3.3 mm | |
| Connection | Crimpanschluss | |
| Orientation | gerade | |
| Type of locking | Ja | |
| contact surface | verzinnt | |
| Connection plating | verzinnt | |
| Rated voltage | 250 V | |
| Rated current | 4 A | |
| Additional parts | unbestückt | |
| Number of rows | 2 | |
| Breakable | No | |
| Colour | gelb |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
