368576-6 | TE Connectivity

Plug housing, 6 pole, pitch 3.96 mm, straight, blue, 368576-6

Order No.: 34P6160
EAN: 4099889910803
MPN:
368576-6

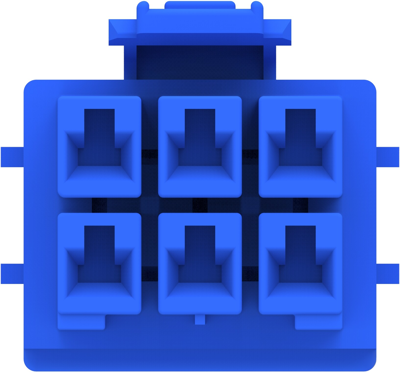

368576-6 TE Connectivity PCB Connection Systems Image 1

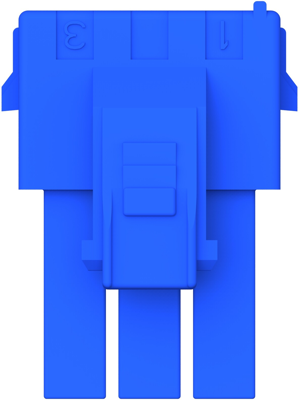

368576-6 TE Connectivity PCB Connection Systems Image 2

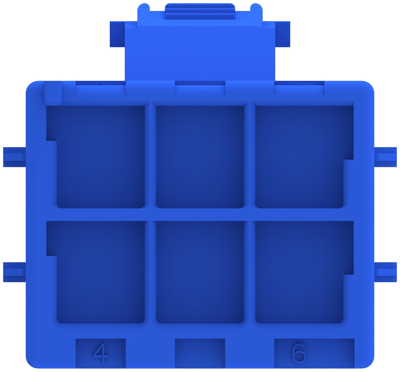

368576-6 TE Connectivity PCB Connection Systems Image 3

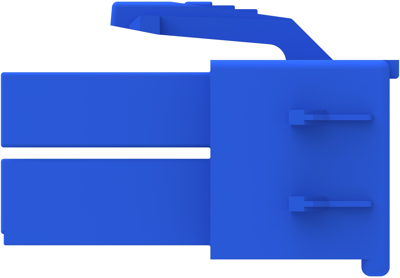

368576-6 TE Connectivity PCB Connection Systems Image 4

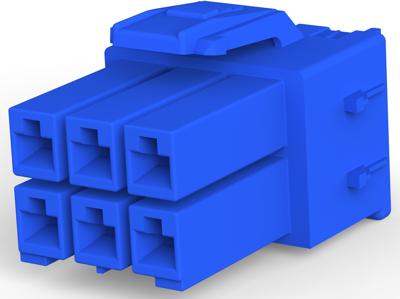

368576-6 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4284 € *
Available in 5 Days: 8,000 pcs. - if ordered today
Total Price:
2.14 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4284 €
10 pcs.
0.4046 €
25 pcs.
0.3689 €
50 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 368576-6, TE Connectivity

Wire-to-Board, Wire-to-Wire, Wire & Cable, 6 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: PA 66
  • Housing Color: blue
  • Number of positions: 6
  • Operating Temperature Range: -30 – 65 °C [-22 – 149 °F]
  • Centerline (Pitch): 3.96 mm
  • Row-to-Row Spacing: 4.6 mm [0.181 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Grid 3.96 mm
Breakable No
Contact type socket
Version plug housing
Rated voltage 300 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 2
Colour blue
Pin number 6 pole
Connection crimp connection
Logistics
Property Value
Country of origin CZ
Customs tariff number 85389091
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
