316088-1 | TE Connectivity

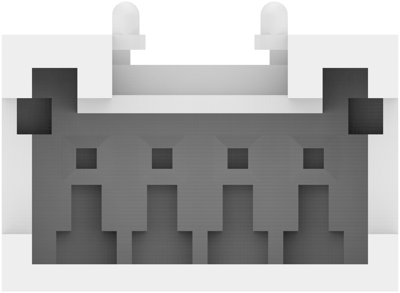

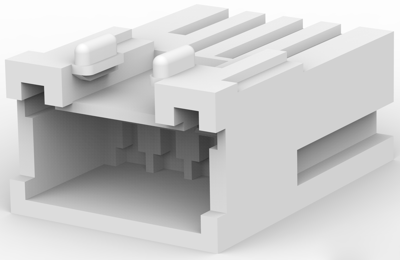

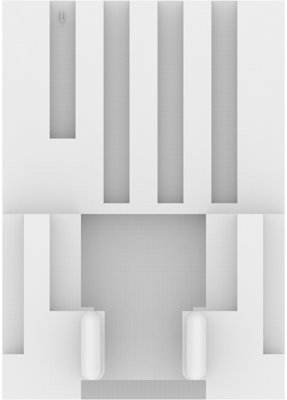

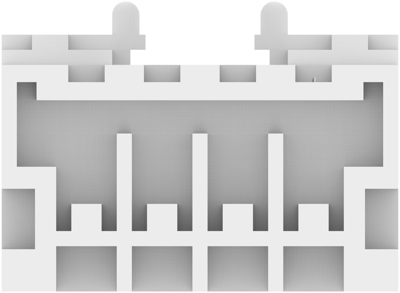

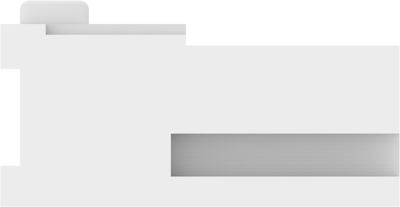

Plug housing, 4 pole, pitch 2.5 mm, straight, natural, 316088-1
Order No.: 35P4339
EAN: 4099889933543
MPN:
316088-1
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
1.73 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3451 €
10 pcs.
0.3213 €
25 pcs.
0.2999 €
50 pcs.
0.2713 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 316088-1, TE Connectivity
Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Tab
- Contact Base Material: Phosphor Bronze
- Housing Material: Nylon 66
- Housing Color: natural
- Number of positions: 4
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Rated current: 3 A
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Breakable | No | |
| Contact type | tab | |
| Version | plug housing | |
| Rated current | 3 A | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Type of locking | No | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 4 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
