316087-1 | TE Connectivity

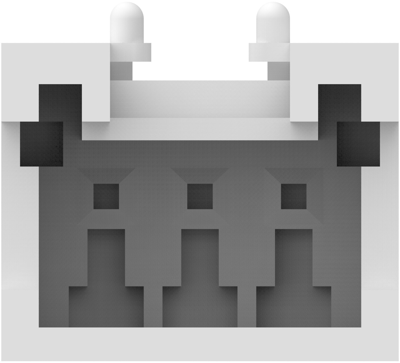

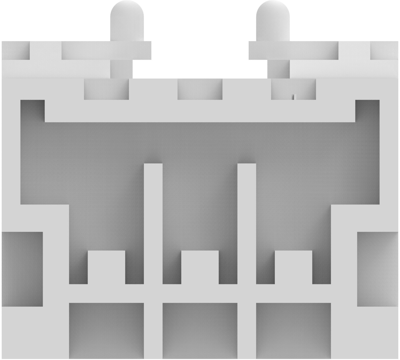

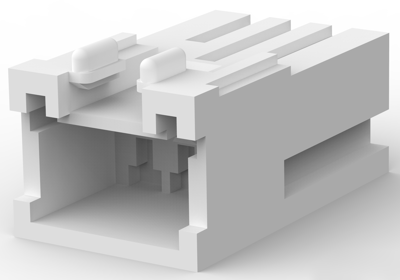

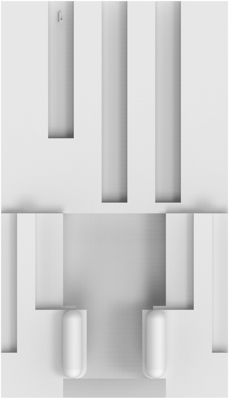

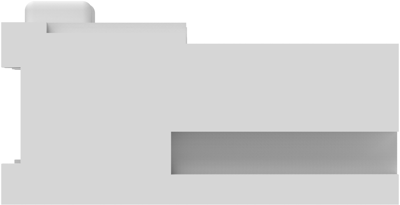

Socket housing, 3 pole, pitch 2.5 mm, straight, natural, 316087-1
Order No.: 35P4338
EAN: 4099889933536
MPN:
316087-1
Unit Price (€ / pc.)
0.1856 € *
Available in 5 Days: 285,400 pcs. - if ordered today
Total Price:
18.56 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1856 €
250 pcs.
0.1714 €
500 pcs.
0.1595 €
1000 pcs.
0.1440 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 316087-1, TE Connectivity
Wire-to-Wire, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Tab
- Contact Base Material: Phosphor Bronze
- Housing Material: Nylon 66
- Housing Color: natural
- Number of positions: 3
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Rated current: 3 A
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Breakable | No | |
| Contact type | tab | |
| Version | socket housing | |
| Rated current | 3 A | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Type of locking | No | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 3 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
