3-6437285-2 | TE Connectivity

Connector, 60 pole, pitch 3 mm, angled, black, 3-6437285-2

Order No.: 71P8236
EAN: 4099891731915
MPN:
3-6437285-2
Series: SUPERSEAL 1.0

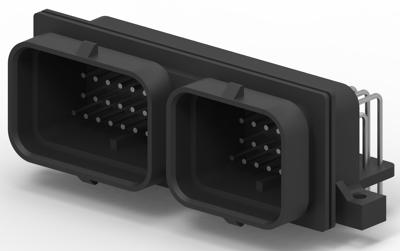

3-6437285-2 TE Connectivity PCB Connection Systems Image 1

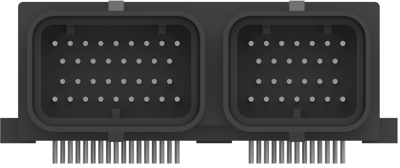

3-6437285-2 TE Connectivity PCB Connection Systems Image 2

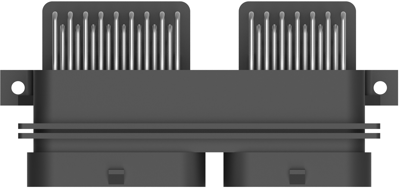

3-6437285-2 TE Connectivity PCB Connection Systems Image 3

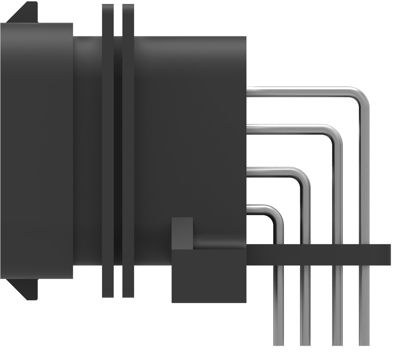

3-6437285-2 TE Connectivity PCB Connection Systems Image 4

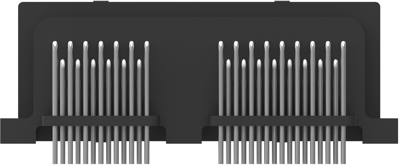

3-6437285-2 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
26.8821 € *
Available in 5 Days: 276 pcs. - if ordered today
Total Price:
26.88 € *
Price list
Quantity
Price per unit*
1 pcs.
26.8821 €
2 pcs.
25.1447 €
5 pcs.
23.6215 €
10 pcs.
21.9555 €
*incl. VAT plus shipping costs
Subject to prior sale

Superseal connector, 3-6437285-2, TE Connectivity

The 3-6437285-2 is designed to meet the increasing need for dependable Printed circuit board applications in harsh environments.

Technical specifications
Filter Property Value
Connection plating tin-plated
Connection solder connection
Colour black
Additional parts equipped
Pin number 60 pole
Contact type pin
Orientation angled
Type of locking Yes
Rated voltage 250 V
contact surface gold-plated
Version connector
Number of rows 4
Grid 3 mm
Logistics
Property Value
Country of origin JP
Customs tariff number 85389099
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
