3-2834075-3 | TE Connectivity

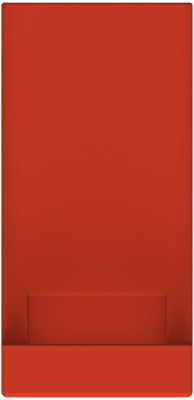

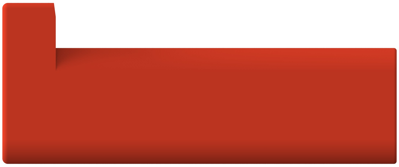

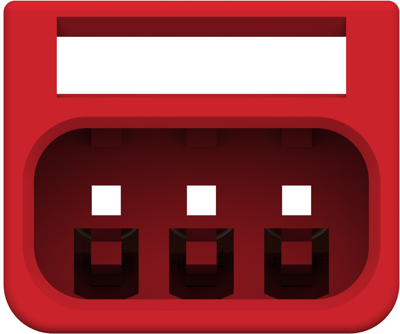

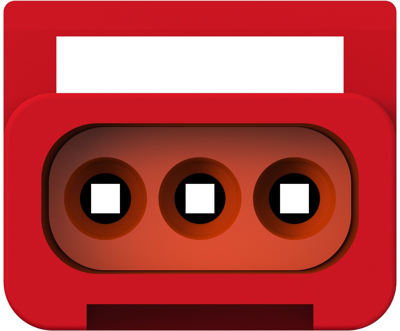

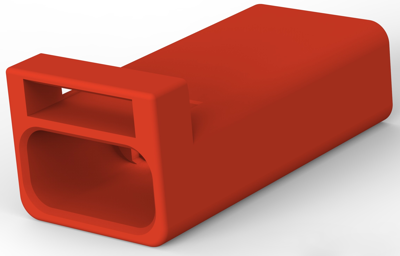

Socket housing, 3 pole, pitch 2.5 mm, straight, red, 3-2834075-3
Unit Price (€ / pc.)
0.8330 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8330 €
10 pcs.
0.7497 €
50 pcs.
0.6783 €
100 pcs.
0.6069 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable mount socket, 3-2834075-3, TE
These IP67 compact connector have a tough thermoplastic housing and a rubber seal making them suitable for the harshest environments.
Features
- Compact design
- Sealed to IP67 when mated
- Easy assembly identification with three colour options
- Pre-assembled seals saving valuable assembly time
Technical specifications
| Colour | red | |
| Breakable | No | |
| Type of locking | Yes | |
| Rated current | 5 A | |
| Grid | 2.5 mm | |
| Pin number | 3 pole | |
| Version | socket housing | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | CN |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
