3-2106003-4 | TE Connectivity
Connector, 4 pole, pitch 0.16 mm, straight, natural, 3-2106003-4
Order No.: 71P7761
EAN: 4099891730673
MPN:
3-2106003-4
Unit Price (€ / pc.)
1.3923 € *
Available in 5 Days: 21,600 pcs. - if ordered today
Total Price:
1.39 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3923 €
10 pcs.
1.2733 €
50 pcs.
1.1424 €
100 pcs.
1.0353 €
*incl. VAT plus shipping costs
Subject to prior sale

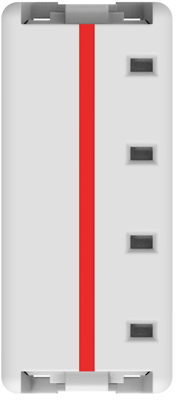

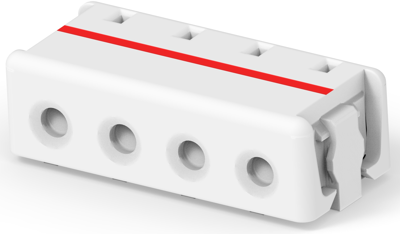

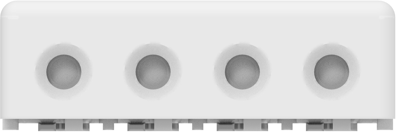

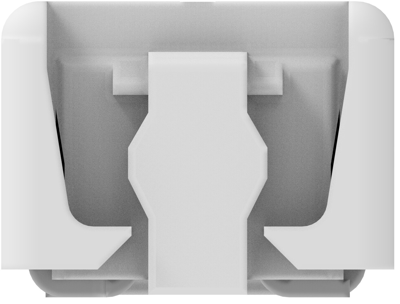

Connector assembly, 3-2106003-4, TE Connectivity
The 3-2106003-4 is designed for quick, tool-less termination of discrete solid and stranded wire leads to metal clad boards used in LED applications and FR4 boards used in thru-hole non-LED lighting applications. Integral cover provides wire entry location and when fully seated wire leads are secured in dual IDC slots ensures electrical connections.
Features
- Insulation displacement eliminates the need to pre-strip wire insulation prior to “tool-less” termination
- Integral cover provides a robust, mechanical strain relieved connection in high vibration applications
- Wire placement viewing window and wire gauge color coded housings assist in error free assembly
Applications
- LED lighting
- HVAC controls
- Fire and Security controls
- Household Appliances
- Power Tools
Technical specifications
| Colour | natural | |
| contact surface | tin-plated | |
| Rated current | 6 A | |
| Grid | 0.16 mm | |
| Pin number | 4 pole | |
| Version | connector | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | SMD | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
