3-1971906-5 | TE Connectivity

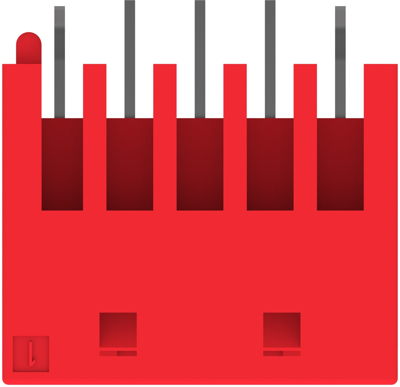

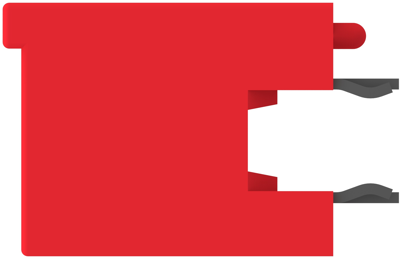

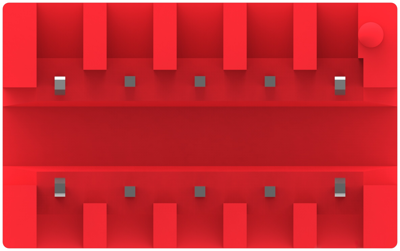

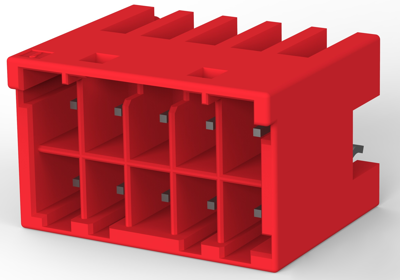

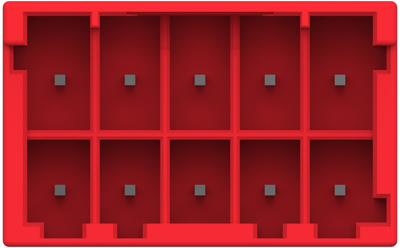

Pin header, 10 pole, pitch 3.3 mm, straight, red, 3-1971906-5
Order No.: 34P8762
EAN: 4099889916300
MPN:
3-1971906-5
Unit Price (€ / pc.)
0.5117 € *
Available: 0 pcs.
Available in 5 Days: 7,128 pcs.
Leadtime: 13 Weeks **
Total Price:
0.51 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5117 €
10 pcs.
0.4403 €
50 pcs.
0.3927 €
100 pcs.
0.3451 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 3-1971906-5, TE Connectivity
Wire-to-Board, Printed Circuit Board, Vertical, 10 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Tab
- Housing Material: PA 66 GF
- Housing Color: red
- Orientation: straight
- Number of positions: 10
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Rated current: 4 A
- Centerline (Pitch): 3.3 mm
- Row-to-Row Spacing: 5.2 mm [0.205 in]
- Sealable: No
Technical specifications
| Version | Stiftleiste | |
| Contact type | Stift | |
| Pin number | 10-polig | |
| Grid | 3.3 mm | |
| Connection | Lötstift | |
| Orientation | gerade | |
| Type of locking | Ja | |
| contact surface | verzinnt | |
| Connection plating | verzinnt | |
| Rated voltage | 250 V | |
| Rated current | 4 A | |
| Additional parts | bestückt | |
| Number of rows | 2 | |
| Breakable | No | |
| Colour | rot |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
