3-1971817-3 | TE Connectivity
Connector, 3 pole, pitch 2.5 mm, straight, natural, 3-1971817-3
Order No.: 71P7738
EAN: 4099891730550
MPN:
3-1971817-3
Unit Price (€ / pc.)
0.9044 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
4.52 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9044 €
10 pcs.
0.8330 €
25 pcs.
0.7854 €
50 pcs.
0.7021 €
*incl. VAT plus shipping costs
Subject to prior sale

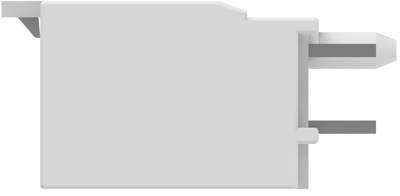

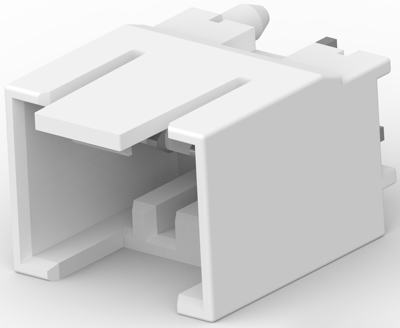

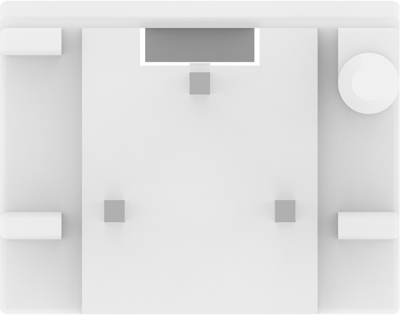

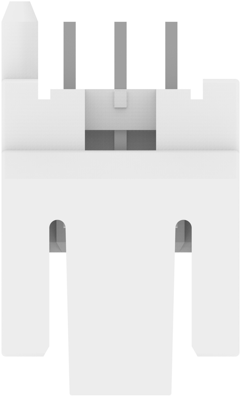

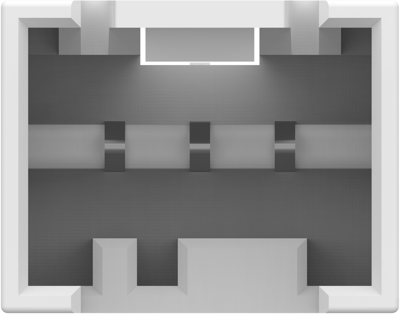

PCB header, 3-1971817-3, TE Connectivity
PCB Mount header, Vertical, Wire-to-Board, 3 Position, 2.5 mm Centerline, Fully shrouded, Tin, Through Hole - Solder, Signal, Natural.
Applications
- Front-loading washing machine
- Dishwasher
- Microwave oven
- Refrigerator
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Contact type | tab | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Version | connector | |
| Rated current | 2 A | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 3 pole | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
