3-1971793-4 | TE Connectivity

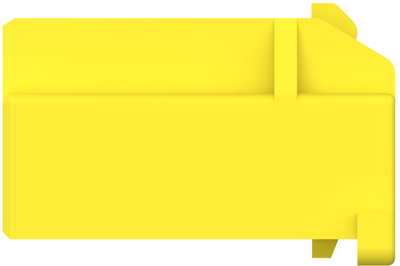

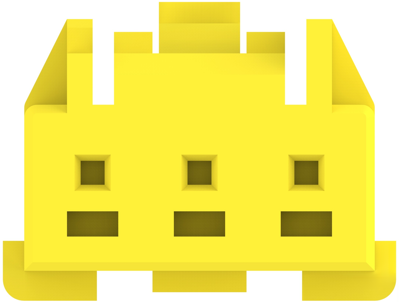

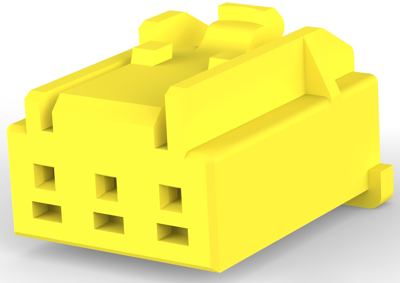

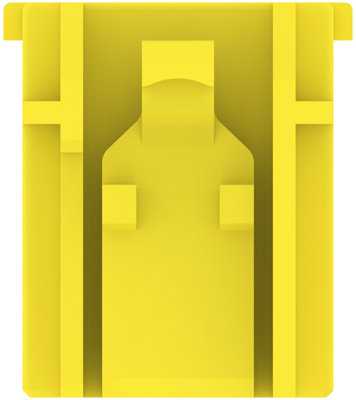

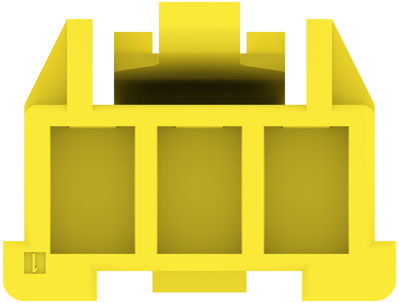

Plug housing, 3 pole, pitch 2.5 mm, straight, yellow, 3-1971793-4
Order No.: 34P8874
EAN: 4099889916898
MPN:
3-1971793-4
Unit Price (€ / pc.)
0.0809 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
1,747.87 € *
*incl. VAT plus shipping costs
**Subject to prior sale
21600 pcs.
0.0809 €
PCB Connection System, 3-1971793-4, TE Connectivity
Wire-to-Wire, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Tab
- Contact Base Material: Copper Alloy
- Housing Material: PA 66 GF
- Housing Color: yellow
- Number of positions: 3
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Rated current: 3 A
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 1 | |
| Version | Steckergehäuse | |
| Additional parts | unbestückt | |
| Breakable | No | |
| Colour | gelb | |
| Contact type | Buchse | |
| Rated voltage | 50 V | |
| Rated current | 3 A | |
| Orientation | gerade | |
| Pin number | 3-polig | |
| Grid | 2.5 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
