3-1971793-2 | TE Connectivity

Plug housing, 3 pole, pitch 2.5 mm, straight, blue, 3-1971793-2

Order No.: 34P8871
EAN: 4099889916867
MPN:
3-1971793-2

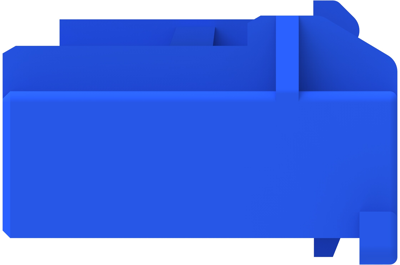

3-1971793-2 TE Connectivity PCB Connection Systems Image 1

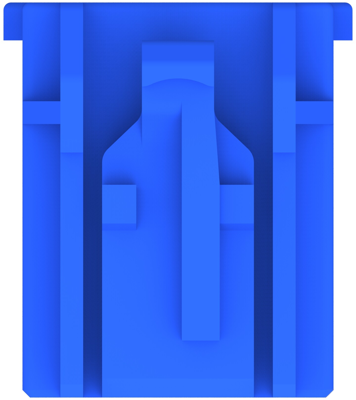

3-1971793-2 TE Connectivity PCB Connection Systems Image 2

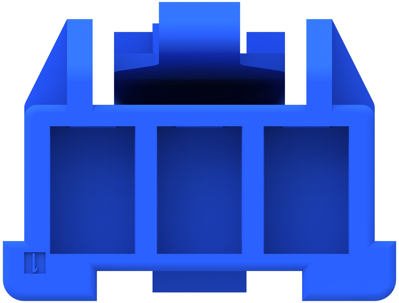

3-1971793-2 TE Connectivity PCB Connection Systems Image 3

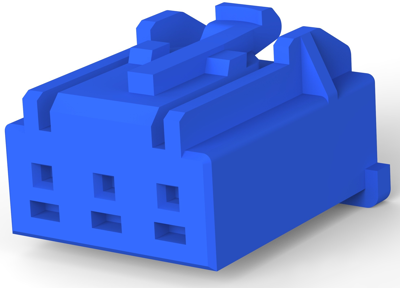

3-1971793-2 TE Connectivity PCB Connection Systems Image 4

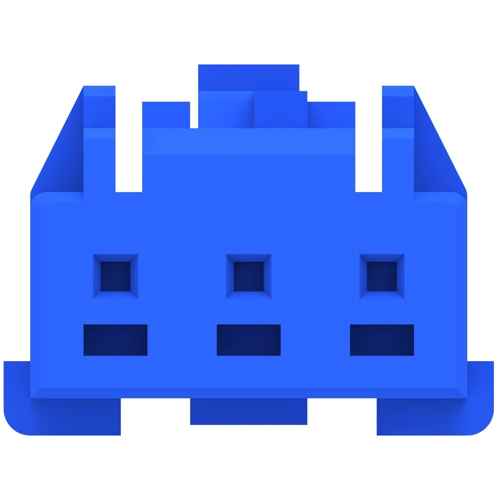

3-1971793-2 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.1012 € *
Available in 5 Days: 21,587 pcs. - if ordered today
Total Price:
182.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
1800 pcs.
0.1012 €

PCB Connection System, 3-1971793-2, TE Connectivity

Wire-to-Wire, Wire & Cable, 3 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Tab
  • Contact Base Material: Copper Alloy
  • Housing Material: PA 66 GF
  • Housing Color: blue
  • Number of positions: 3
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Rated current: 3 A
  • Centerline (Pitch): 2.5 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Connection crimp connection
Breakable No
Number of rows 1
Colour blue
Contact type socket
Additional parts unequipped
Rated current 3 A
Rated voltage 50 V
Pin number 3 pole
Orientation straight
Version plug housing
Type of locking Yes
Grid 2.5 mm
Logistics
Customs tariff number 85389091
Country of origin NL
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
