3-1971772-3 | TE Connectivity
Connector, 3 pole, pitch 6 mm, straight, blue, 3-1971772-3
Unit Price (€ / pc.)
0.5712 € *
Available in 5 Days: 4,105 pcs. - if ordered today
Total Price:
0.57 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5712 €
10 pcs.
0.5355 €
25 pcs.
0.4998 €
50 pcs.
0.4522 €
*incl. VAT plus shipping costs
Subject to prior sale

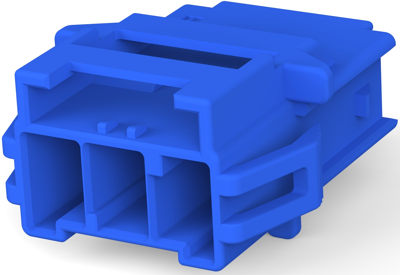

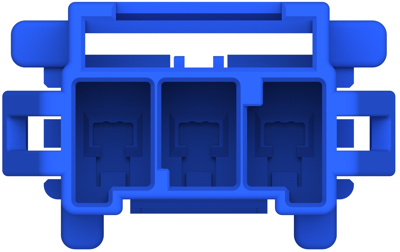

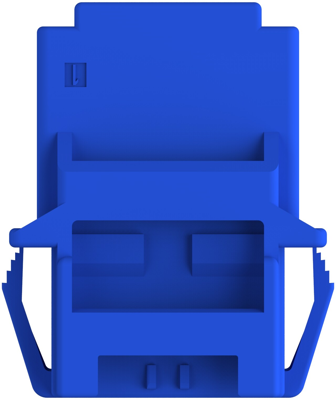

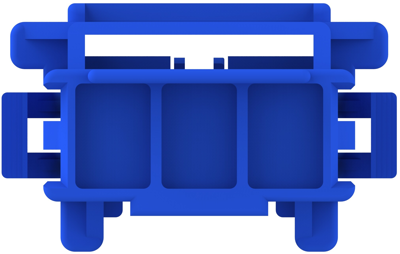

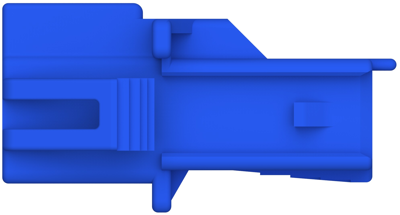

Connector housing, 3-1971772-3, TE Connectivity
Rectangular power connector, Housing, Cap, Wire-to-Wire, 3 Position, 6 mm centerline, Wire and Cable, UL 94V-0.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Colour | blue | |
| Pin number | 3 pole | |
| Contact type | tab | |
| Orientation | straight | |
| Type of locking | Yes | |
| Rated voltage | 600 V | |
| Version | connector | |
| Number of rows | 1 | |
| Grid | 6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
