3-1565087-4 | TE Connectivity

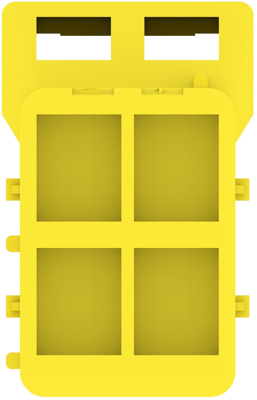

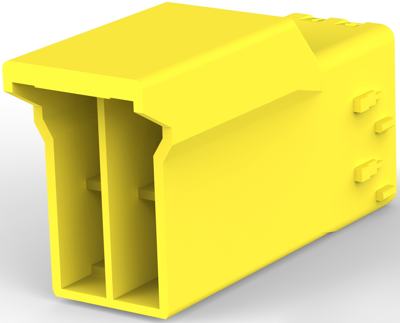

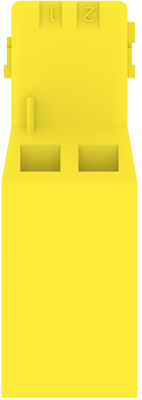

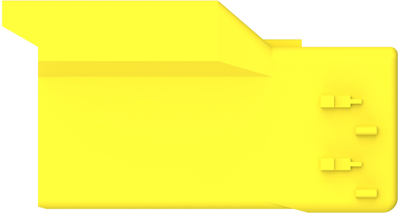

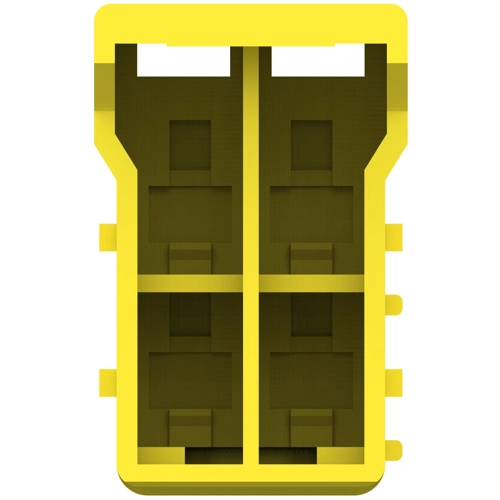

Socket housing, 4 pole, pitch 3.5 mm, straight, yellow, 3-1565087-4
Order No.: 34P8813
EAN: 4099889916621
MPN:
3-1565087-4
Unit Price (€ / pc.)
0.2666 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
1.33 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2666 €
10 pcs.
0.2463 €
25 pcs.
0.2297 €
50 pcs.
0.2083 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 3-1565087-4, TE Connectivity
Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Tab
- Contact Base Material: Copper Alloy
- Housing Material: Nylon 6/6
- Housing Color: yellow
- Number of positions: 4
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Centerline (Pitch): 3.5 mm
- Row-to-Row Spacing: 4.8 mm [0.189 in]
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.5 mm | |
| Breakable | No | |
| Contact type | tab | |
| Version | socket housing | |
| Rated voltage | 300 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Colour | yellow | |
| Pin number | 4 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
