293491-4 | TE Connectivity

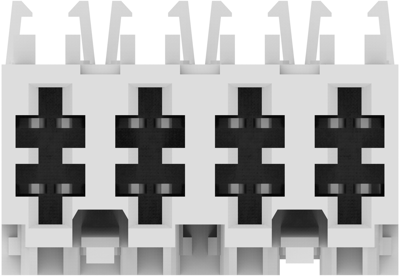

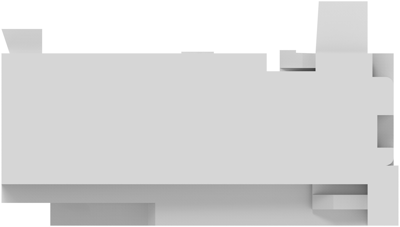

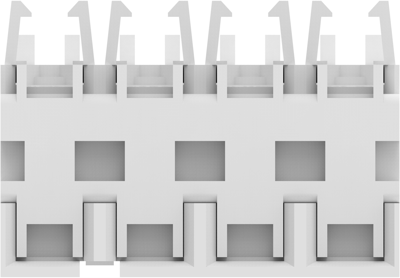

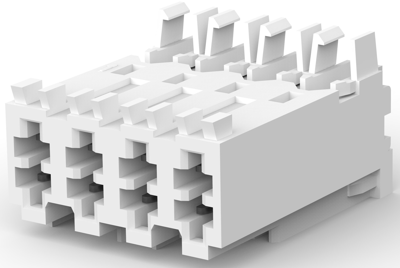

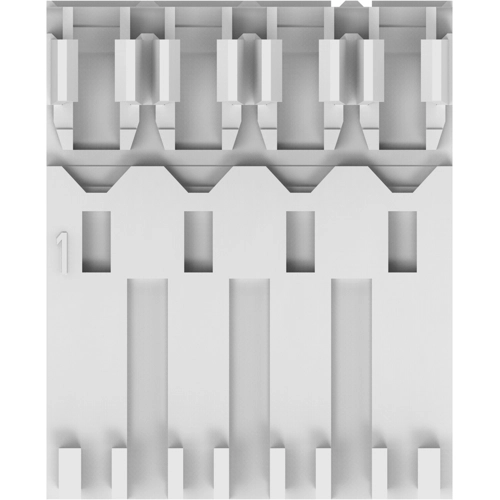

Socket header, 4 pole, pitch 5 mm, angled, natural, 293491-4
Order No.: 35P3995
EAN: 4099889932126
MPN:
293491-4
Unit Price (€ / pc.)
0.4641 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
PCB Connection System, 293491-4, TE Connectivity
Wire-to-Board, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: PA 6.6
- Housing Color: natural
- Number of positions: 4
- Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
- Rated current: 16 A
- Centerline (Pitch): 5 mm
- Sealable: No
- Contact Layout: In-line
Technical specifications
| Connection | IDC connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | unequipped | |
| Breakable | No | |
| Colour | natural | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 380 V | |
| Rated current | 16 A | |
| Orientation | angled | |
| Pin number | 4 pole | |
| Grid | 5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
