284514-8 | TE Connectivity
Pin header, 8 pole, pitch 3.5 mm, straight, green, 284514-8
Order No.: 59F918
MPN:
284514-8
Unit Price (€ / pc.)
5.7834 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
5.78 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7834 €
10 pcs.
5.3788 €
50 pcs.
4.9504 €
100 pcs.
4.4982 €
*incl. VAT plus shipping costs
Subject to prior sale

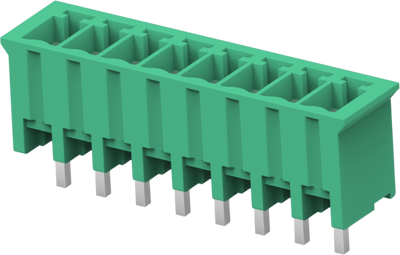

PCB terminal block, 284514-8, TE Connectivity
8 Position PCB Terminal Block, Header, Wire-to-Board, 3.5 mm Centerline, 1 Row, 30 - 14 AWG, 0.05 - 2 mm² Wire, 300 VAC.
Technical specifications
| Colour | green | |
| contact surface | tin-plated | |
| Rated current | 11 A | |
| Grid | 3.5 mm | |
| Pin number | 8 pole | |
| Version | pin header | |
| Orientation | straight | |
| Connection | solder connection | |
| Contact type | pin | |
| Rated voltage | 300 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366930 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
