2842143-5 | TE Connectivity

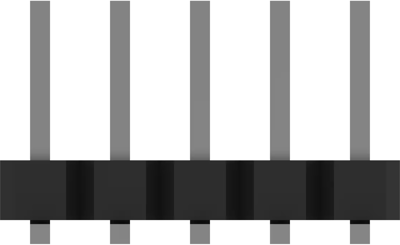

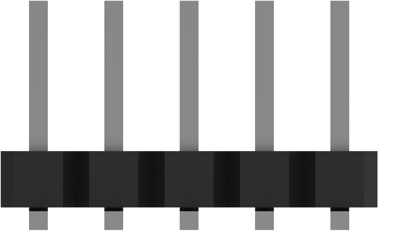

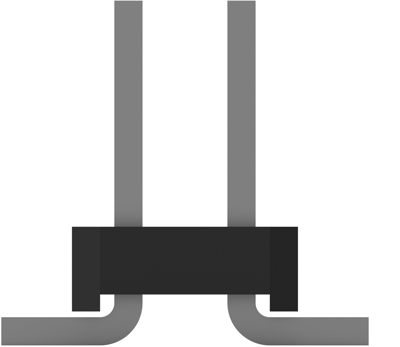

Pin header, 10 pole, pitch 2 mm, straight, black, 2842143-5
Order No.: 59F459
MPN:
2842143-5
PCB connector, 2842143-5, TE Connectivity
PCB mount header, vertical, Board-to-Board, 10 Positions, 2 mm centerline, Breakaway, Gold (Au), Oberflächenmontage, Signal, Black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 10 pole | |
| Grid | 2 mm | |
| Connection | solder connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 125 V | |
| Rated current | 2 A | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
