284047-2 | TE Connectivity

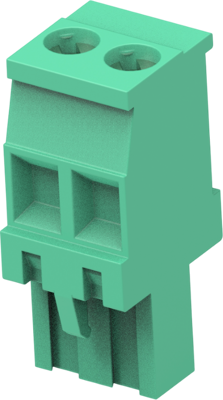

Pin header, 2 pole, pitch 5.08 mm, straight, green, 284047-2
Order No.: 59F905
MPN:
284047-2
Unit Price (€ / pc.)
1.9040 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9040 €
10 pcs.
1.7731 €
50 pcs.
1.6303 €
100 pcs.
1.4875 €
*incl. VAT plus shipping costs
Subject to prior sale

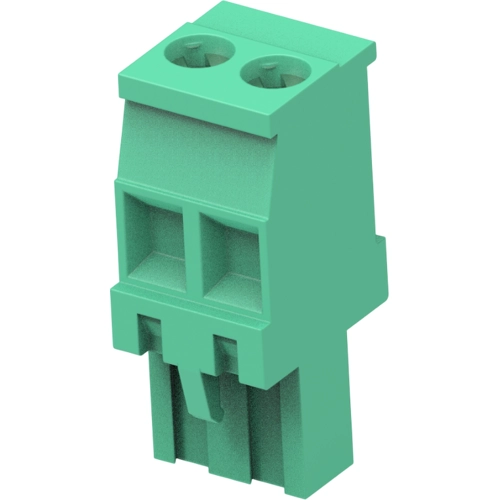

PCB terminal block, 284047-2, TE Connectivity
2 Position PCB Terminal Block, Plug, Wire-to-Board, 5.08 mm Centerline, 1 Row, 90° Wire Entry Angle, 30 - 12 AWG, 0.05 - 3 mm² Wire, 300 VAC.
Technical specifications
| Colour | green | |
| contact surface | tin-plated | |
| Rated current | 15 A | |
| Grid | 5.08 mm | |
| Pin number | 2 pole | |
| Version | pin header | |
| Orientation | straight | |
| Connection | screw connection | |
| Contact type | pin | |
| Rated voltage | 300 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366930 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
