2331928-8 | TE Connectivity
Pin header, 16 pole, pitch 1 mm, straight, black, 2331928-8
Order No.: 59F398
MPN:
2331928-8
Unit Price (€ / pc.)
3.6414 € *
Available in 5 Days: 2,520 pcs. - if ordered today
Total Price:
3.64 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6414 €
10 pcs.
3.3796 €
25 pcs.
3.1535 €
50 pcs.
2.8679 €
*incl. VAT plus shipping costs
Subject to prior sale

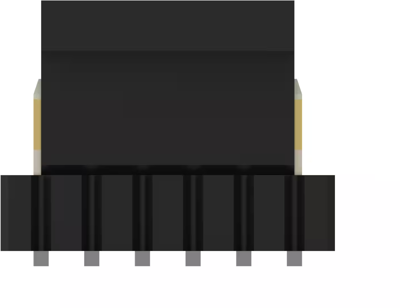

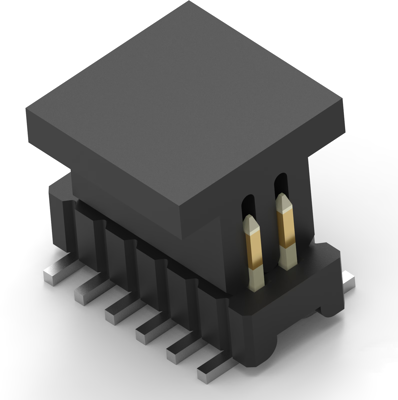

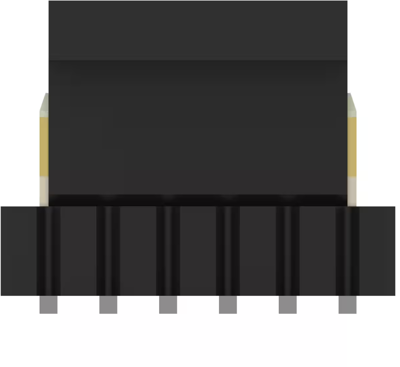

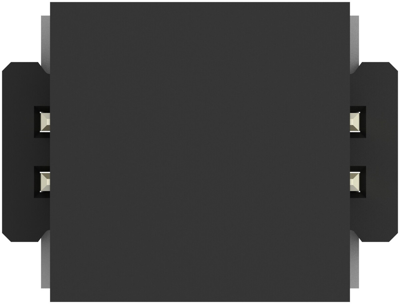

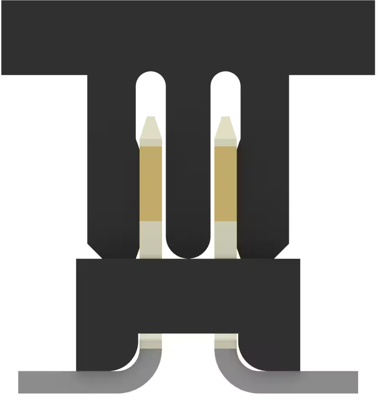

PCB connector, 2331928-8, TE Connectivity
PCB mount header, vertical, Board-to-Board, 16 Positions, 1 mm centerline, Breakaway, Gold Flash, Surface Mount.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 2 | |
| Grid | 1 mm | |
| Orientation | straight | |
| Pin number | 16 pole | |
| Connection | solder connection | |
| Colour | black | |
| Rated current | 1 A | |
| Contact type | pin | |
| Version | pin header | |
| Connection plating | tin-plated | |
| contact surface | gold-plated | |
| Rated voltage | 30 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
