2325102-1 | TE Connectivity
Connector, 2 pole, pitch 2.54 mm, straight, black, 2325102-1
Order No.: 71P6616
EAN: 4099891728298
MPN:
2325102-1
Unit Price (€ / pc.)
6.0095 € *
Available in 5 Days: 175 pcs. - if ordered today

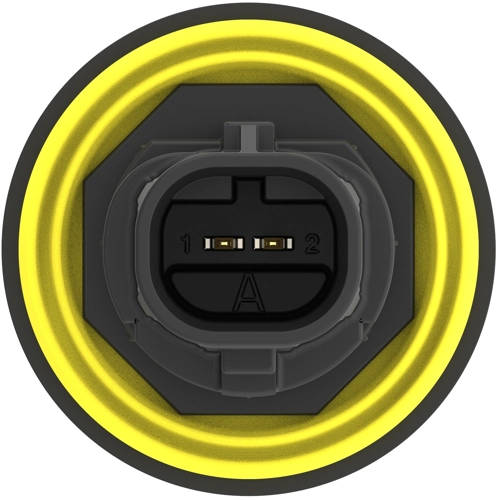

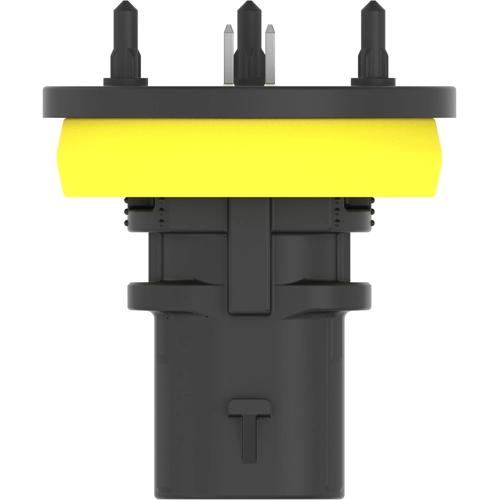

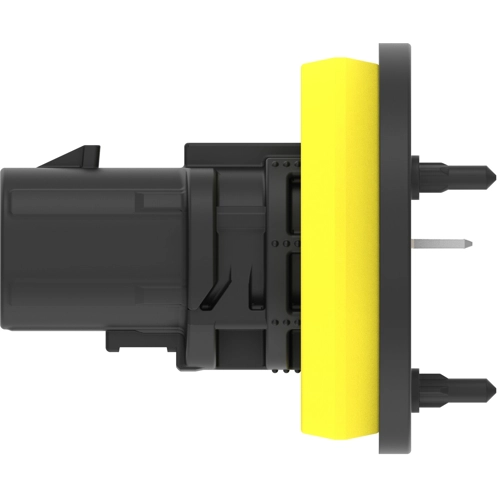

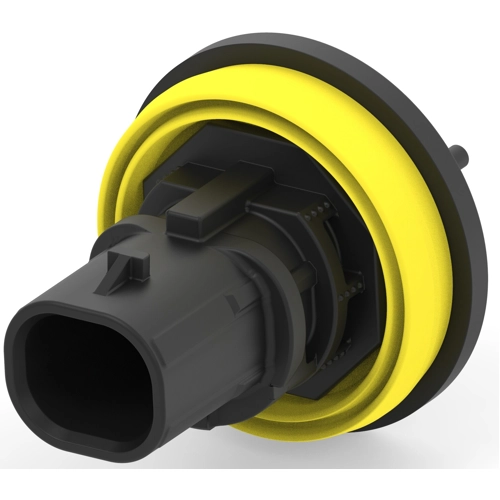

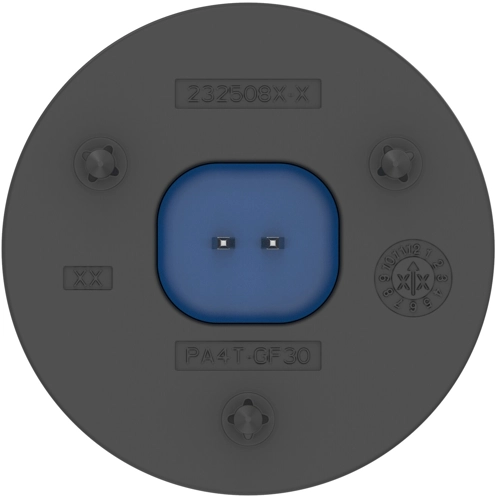

PCB header, 2325102-1, TE Connectivity
PCB Mount header, Vertical, Wire-to-Board, 2 Position, 2.54 mm Centerline, Fully shrouded, Unplated, Through Hole - Solder, Sealable, Signal.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | connector | |
| Contact type | tab | |
| Pin number | 2 pole | |
| Grid | 2.54 mm | |
| Connection | solder connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 33 V | |
| Rated current | 10 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
