2309223-1 | TE Connectivity

Socket header, 16 pole, pitch 2 mm, straight, black, 2309223-1

Order No.: 59F820
MPN:
2309223-1
Series: RITS

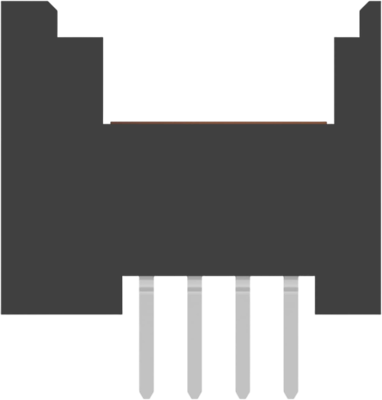

2309223-1 TE Connectivity PCB Connection Systems Image 1

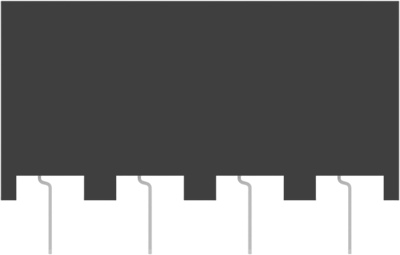

2309223-1 TE Connectivity PCB Connection Systems Image 2

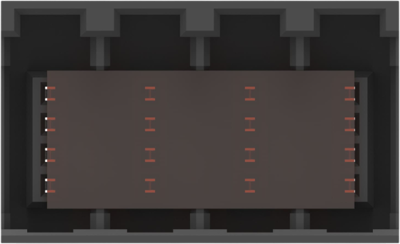

2309223-1 TE Connectivity PCB Connection Systems Image 3

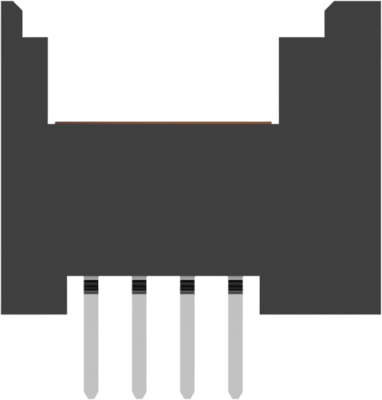

2309223-1 TE Connectivity PCB Connection Systems Image 4

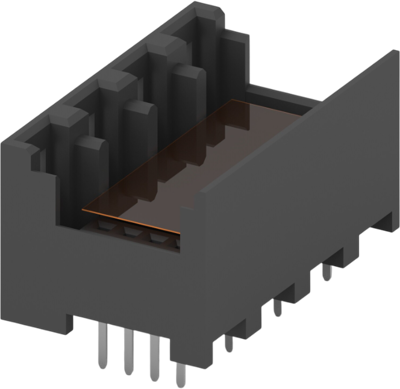

2309223-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
5.4264 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
5.43 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4264 €
10 pcs.
5.0456 €
50 pcs.
4.6410 €
100 pcs.
4.2245 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Mount Receptacle, 2309223-1, TE Connectivity

PCB Mount Header, Vertical, Wire-to-Board, 16 Position, 2 mm Centerline, Partially Shrouded, Gold (Au), RITS Header Connectors PCB Mount.

Technical specifications
Colour black
contact surface gold-plated
Rated current 3 A
Grid 2 mm
Pin number 16 pole
Version socket header
Orientation straight
Contact type socket
Rated voltage 32 V
Number of rows 4
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
