2299683-4 | TE Connectivity

Pin header, 4 pole, pitch 2.5 mm, straight, natural, 2299683-4

Order No.: 71P6397
EAN: 4099891728014
MPN:
2299683-4
Series: Economy Power

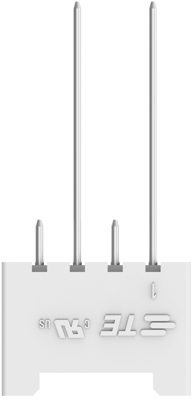

2299683-4 TE Connectivity PCB Connection Systems Image 1

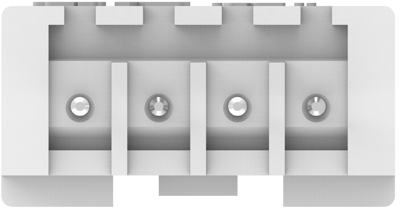

2299683-4 TE Connectivity PCB Connection Systems Image 2

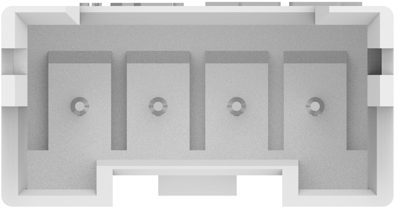

2299683-4 TE Connectivity PCB Connection Systems Image 3

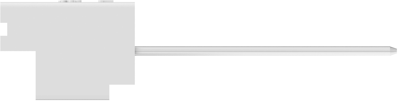

2299683-4 TE Connectivity PCB Connection Systems Image 4

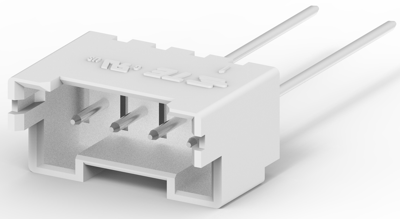

2299683-4 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4046 € *
Available in 5 Days: 3,300 pcs. - if ordered today
Total Price:
2.02 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4046 €
10 pcs.
0.3689 €
25 pcs.
0.3451 €
50 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Header, 2299683-4, TE Connectivity

PCB Mount header, Vertical, Wire-to-Board, 4 Position, 2.5 mm Centerline, Fully shrouded, Tin, Through Hole-Solder.

Technical specifications
Filter Property Value
Grid 2.5 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 4.2 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour natural
Pin number 4 pole
Connection solder connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
