2298196-3 | TE Connectivity

Pin header, 3 pole, pitch 2.54 mm, straight, natural, 2298196-3

Order No.: 71P6389
EAN: 4099891727994
MPN:
2298196-3

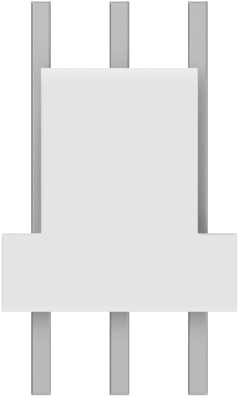

2298196-3 TE Connectivity PCB Connection Systems Image 1

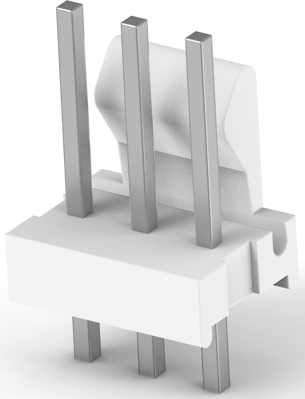

2298196-3 TE Connectivity PCB Connection Systems Image 2

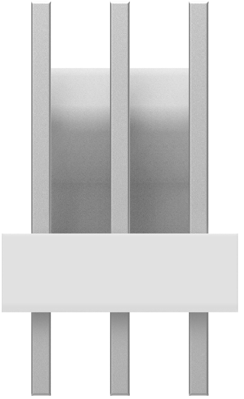

2298196-3 TE Connectivity PCB Connection Systems Image 3

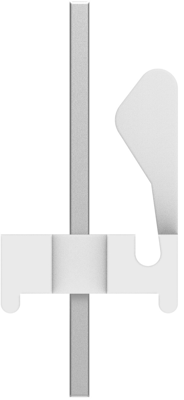

2298196-3 TE Connectivity PCB Connection Systems Image 4

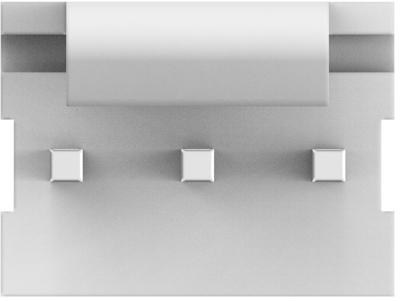

2298196-3 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.1142 € *
Available in 5 Days: 9,000 pcs. - if ordered today
Total Price:
11.42 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1142 €
250 pcs.
0.1047 €
500 pcs.
0.0976 €
1000 pcs.
0.0881 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin header, 2298196-3, TE Connectivity

PCB Mount header, Vertical, Wire-to-Board, 3 Position, 2.54 mm Centerline, Partially shrouded, Tin, Through Hole - Solder, Signal, Natural.

Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 5 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour natural
Pin number 3 pole
Connection solder connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
