2297127-1 | TE Connectivity

Pin header, 10 pole, pitch 2.54 mm, straight, black, 2297127-1

Order No.: 71P6385
EAN: 4099891727963
MPN:
2297127-1

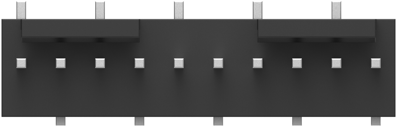

2297127-1 TE Connectivity PCB Connection Systems Image 1

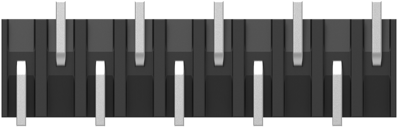

2297127-1 TE Connectivity PCB Connection Systems Image 2

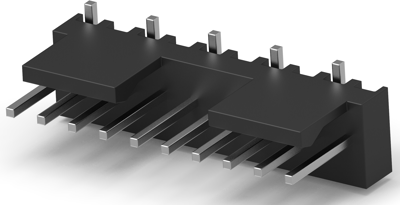

2297127-1 TE Connectivity PCB Connection Systems Image 3

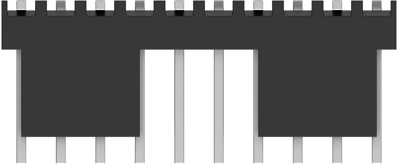

2297127-1 TE Connectivity PCB Connection Systems Image 4

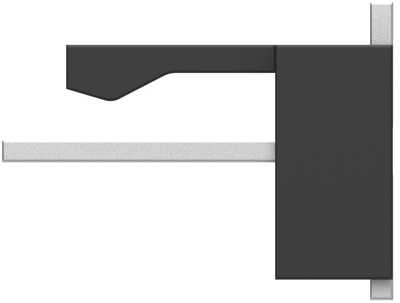

2297127-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.8560 € *
Available in 5 Days: 5,625 pcs. - if ordered today
Total Price:
199.92 € *
Price list
Quantity
Price per unit*
70 pcs.
2.8560 €
250 pcs.
2.7370 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin header, 2297127-1, TE Connectivity

PCB Mount header, Wire-to-Board, 10 position, Vertical, Partially shrouded, Copper alloy, Surface mount, Signal, Tape & Reel.

Technical specifications
Filter Property Value
Colour black
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 10 pole
Version pin header
Additional parts equipped
Orientation straight
Connection SMD
Contact type pin
Rated voltage 250 V
Number of rows 1
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
