2296206-2 | TE Connectivity

Socket header, 2 pole, pitch 4.2 mm, straight, white, 2296206-2

Order No.: 35P5500
EAN: 4099889939187
MPN:
2296206-2

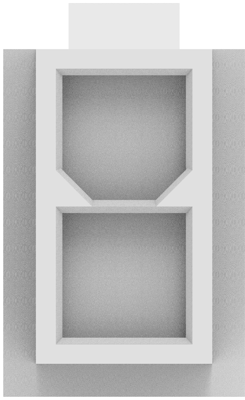

2296206-2 TE Connectivity PCB Connection Systems Image 1

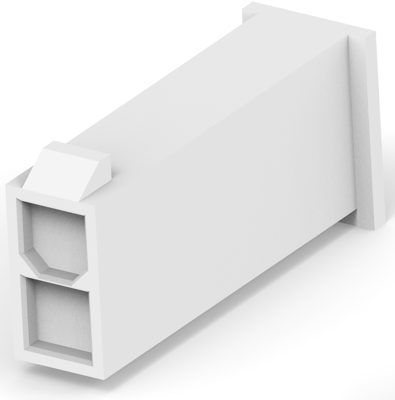

2296206-2 TE Connectivity PCB Connection Systems Image 2

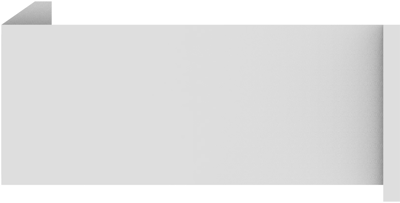

2296206-2 TE Connectivity PCB Connection Systems Image 3

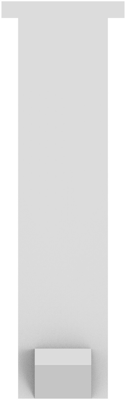

2296206-2 TE Connectivity PCB Connection Systems Image 4

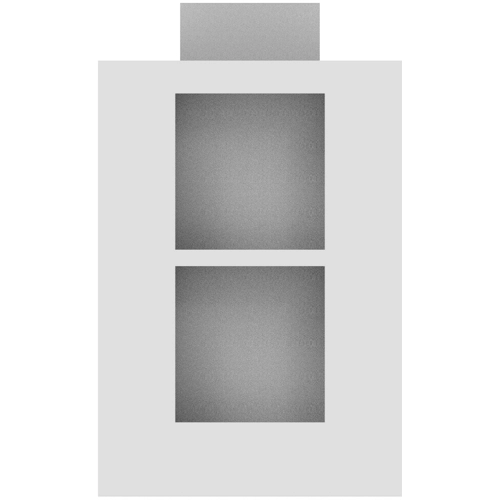

2296206-2 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.1761 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
3,170.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
18000 pcs.
0.1761 €

PCB Connection System, 2296206-2, TE Connectivity

Wire-to-Wire, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Number of positions: 2
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 4.2 mm
  • Row-to-Row Spacing: 4.2 mm [0.165 in]
  • Sealable: No
Technical specifications
Colour white
Breakable No
Type of locking No
Grid 4.2 mm
Pin number 2 pole
Version socket header
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Number of rows 2
Logistics
Country of origin JP
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
