2292457-3 | TE Connectivity

Connector, 3 pole, pitch 5 mm, straight, natural, 2292457-3

Order No.: 71P6368
EAN: 4099891727925
MPN:
2292457-3
Series: RAST 5

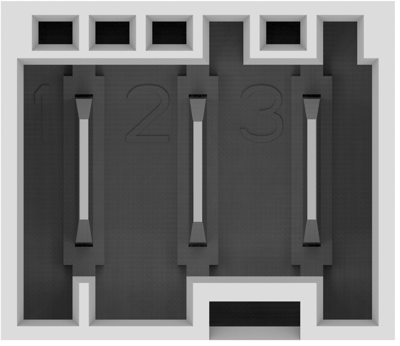

2292457-3 TE Connectivity PCB Connection Systems Image 1

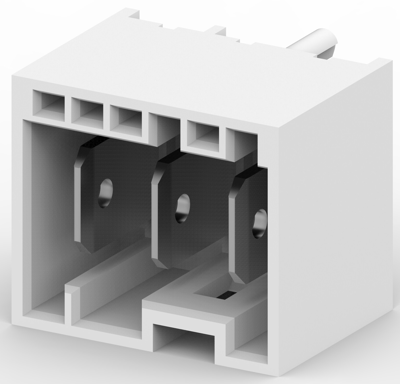

2292457-3 TE Connectivity PCB Connection Systems Image 2

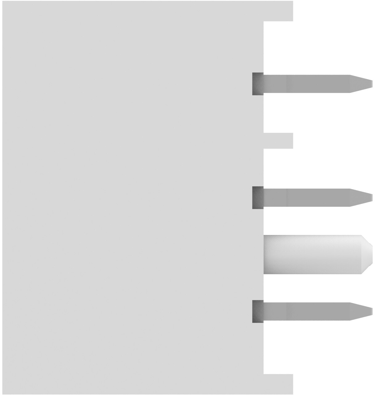

2292457-3 TE Connectivity PCB Connection Systems Image 3

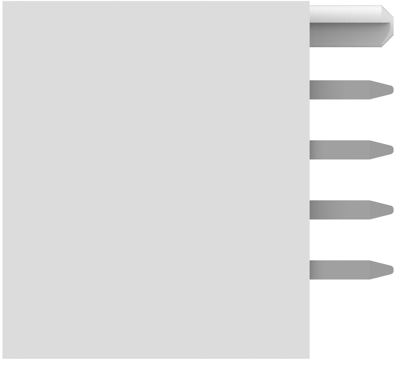

2292457-3 TE Connectivity PCB Connection Systems Image 4

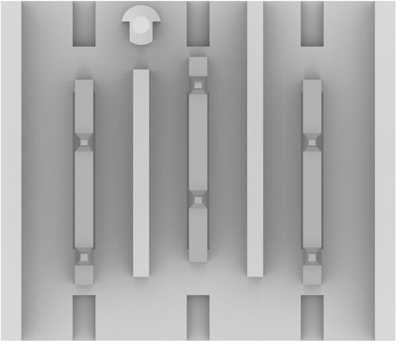

2292457-3 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7140 € *
Available in 5 Days: 6,016 pcs. - if ordered today
Total Price:
3.57 € *
Price list
Quantity
Price per unit*
5 pcs.
0.7140 €
10 pcs.
0.6664 €
25 pcs.
0.6188 €
50 pcs.
0.5593 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Header, 2292457-3, TE Connectivity

PCB Mount header, Vertical, Wire-to-Board, 3 Position, 5 mm centerline, Fully shrouded, Tin, Through Hole-Solder, Power, Natural.

Technical specifications
Filter Property Value
Grid 5 mm
Contact type tab
Connection plating tin-plated
contact surface tin-plated
Version connector
Rated current 16 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour natural
Pin number 3 pole
Connection solder connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
