2291491-1 | TE Connectivity

Cage with integrated plug, 240 pole, pitch 0.8 mm, angled, 2291491-1

Order No.: 71P6334
EAN: 4099891634896
MPN:
2291491-1

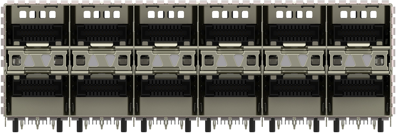

2291491-1 TE Connectivity PCB Connection Systems Image 1

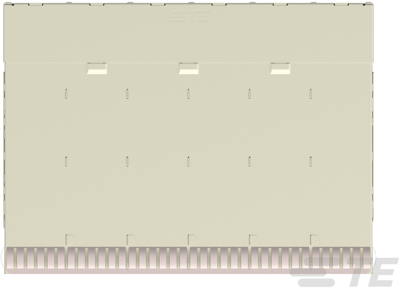

2291491-1 TE Connectivity PCB Connection Systems Image 2

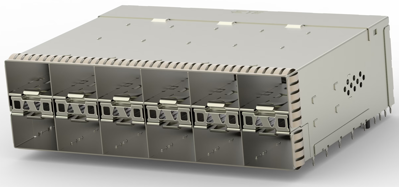

2291491-1 TE Connectivity PCB Connection Systems Image 3

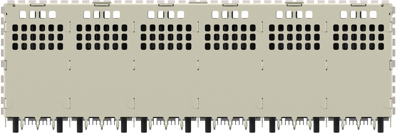

2291491-1 TE Connectivity PCB Connection Systems Image 4

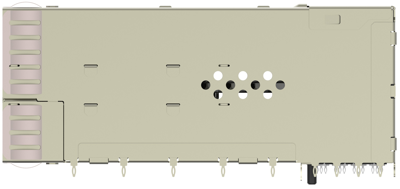

2291491-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
114.5137 € *
Available in 5 Days: 130 pcs. - if ordered today
Total Price:
229.03 € *
*incl. VAT plus shipping costs
Subject to prior sale
2 pcs.
114.5137 €

Cage assembly, 2291491-1, TE Connectivity

zSFP+, Cage Assembly with Integrated connector, Data rate (Max) 32 Gb/s, Internal/External EMI Spring, zSFP+ Thermally enhanced.

Applications

  • Telecommunications
  • Data center
  • Medical
  • Networking
  • Test and measurement equipment
Technical specifications
Filter Property Value
contact surface gold-plated
Grid 0.8 mm
Pin number 240 pole
Version cage with integrated plug
Additional parts equipped
Orientation angled
Connection press-fit
Contact type socket
Number of rows 2
Logistics
Property Value
Country of origin CN
Customs tariff number 85366930
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
