2288172-6 | TE Connectivity

Cage with integrated plug, 480 pole, pitch 0.8 mm, angled, 2288172-6

Order No.: 71P6327
EAN: 4099891634858
MPN:
2288172-6

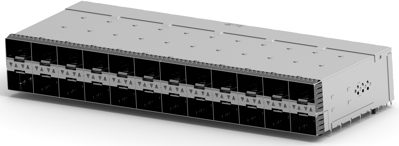

2288172-6 TE Connectivity PCB Connection Systems Image 1

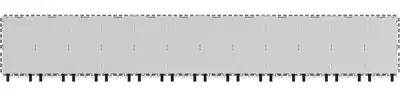

2288172-6 TE Connectivity PCB Connection Systems Image 2

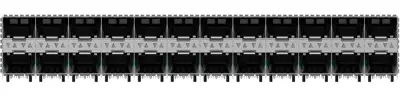

2288172-6 TE Connectivity PCB Connection Systems Image 3

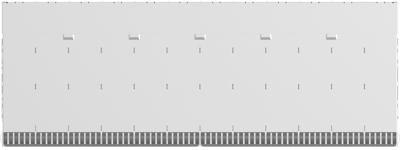

2288172-6 TE Connectivity PCB Connection Systems Image 4

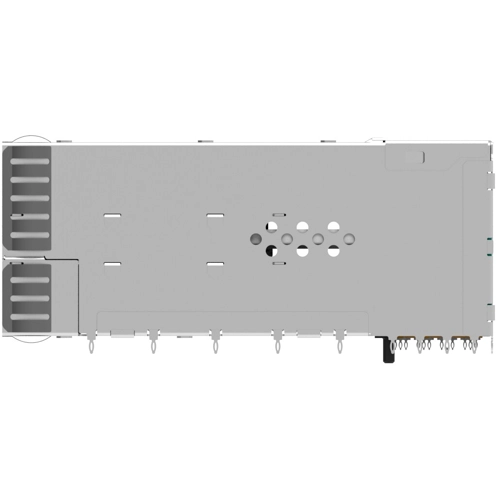

2288172-6 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
162.1256 € *
Available in 5 Days: 92 pcs. - if ordered today
Total Price:
162.13 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
162.1256 €

Cage assembly, 2288172-6, TE Connectivity

zSFP+, Cage Assembly with Integrated connector, Data rate (Max) 32 Gb/s, Internal/External EMI Spring, zSFP+ Thermally enhanced.

Applications

  • Telecommunications
  • Data center
  • Medical
  • Networking
  • Test and measurement equipment
Technical specifications
Filter Property Value
Additional parts equipped
contact surface gold-plated
Grid 0.8 mm
Orientation angled
Version cage with integrated plug
Connection press-fit
Contact type socket
Number of rows 2
Pin number 480 pole
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
