2227670-7 | TE Connectivity
Cage with integrated plug, 152 pole, pitch 0.8 mm, angled, 2227670-7
Unit Price (€ / pc.)
109.0397 € *
Available: 0 pcs.
Available in 5 Days: 4 pcs.
Leadtime: 1 Week **

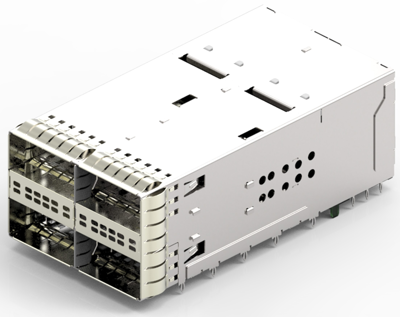

Cage assembly, 2227670-7, TE Connectivity
The 2227670-7 offers increased data rates in an industry standard, scalable design that provides a simple upgrade path from 10 Gbps to 28 Gbps and 56 Gbps.
Features
- Superior signal integrity and EMI protection
- Industry standard interface
- Comprehensive product portfolio
Applications
- Network interface
- Switches
- Servers
- Routers
- Wireless Base Stations
- Test and Measurement Equipment
Technical specifications
| Connection | press-fit | |
| Number of rows | 2 | |
| Version | cage with integrated plug | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Rated current | 0.5 A | |
| Orientation | angled | |
| Pin number | 152 pole | |
| Grid | 0.8 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
