2227302-1 | TE Connectivity

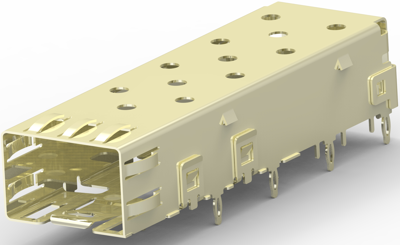

Cage assembly, angled, 2227302-1
Order No.: 37P2502
EAN: 4099889824360
MPN:
2227302-1
Unit Price (€ / pc.)
2.2610 € *
Available in 5 Days: 3,823 pcs. - if ordered today
Total Price:
11.31 € *
Price list
Quantity
Price per unit*
5 pcs.
2.2610 €
10 pcs.
2.0944 €
25 pcs.
1.9516 €
50 pcs.
1.7612 €
*incl. VAT plus shipping costs
Subject to prior sale
SFP/SFP+/zSFP+, 2227302-1, TE Connectivity
Cage Type: Single, Pluggable I/O Product Type: Cage, Connector System: Cable-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Port Matrix Configuration: 1 x 1, Number of Ports: 1, Data Rate (Max): 4 Gb/s, Termination Method to Printed Circuit Board: Through Hole - Press-Fit, PCB Mounting Style: Through Hole - Press-Fit, Connector Mounting Type: Board Mount, Cage Material: Stainless Steel, Tail Length: 3 mm, Operating Temperature Range: -55 – 85 °C, For Use With Pluggable I/O Products: SFP SMT Connector, Pluggable I/O Applications: SFP, Packaging Method: Box & Tray,Box, EMI Containment Feature Type: External Springs, Included Lightpipe: No, Comment: 11 Press-Fit Tails
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | cage assembly | |
| Orientation | angled | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | press-fit |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85389011 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
