2213738-5 | TE Connectivity

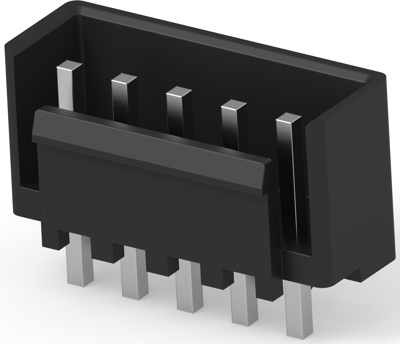

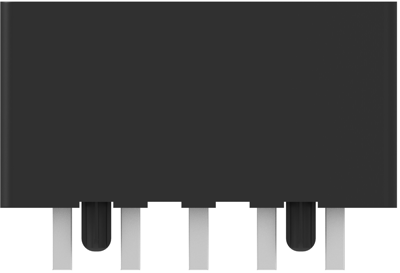

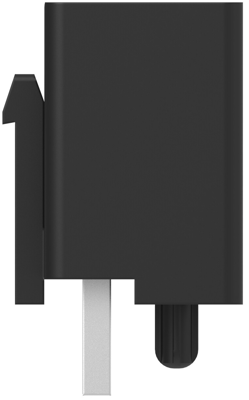

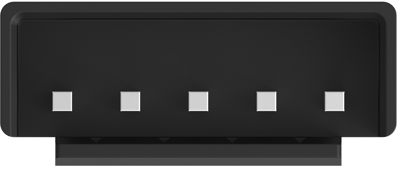

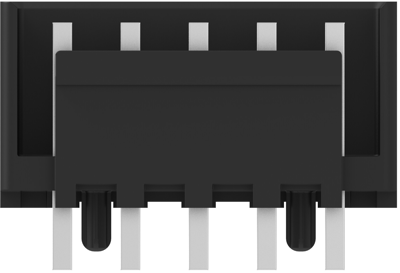

Pin header, 5 pole, pitch 3.96 mm, straight, black, 2213738-5
Unit Price (€ / pc.)
1.4042 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
1.40 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4042 €
10 pcs.
1.2614 €
50 pcs.
1.1305 €
100 pcs.
1.0115 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 2213738-5, TE Connectivity
The 2213738-5 is a reflow capable power header that builds on a tested solution for wireto-board applications. This product thermoplastic housing is designed to withstand high temperatures associated with reflow soldering. This allows for easy transition to a full reflow assembly process.
Features
- Positive audible latching for error resistant assembly
- Shrouded header eliminates mismating due to alignment of the receptacle/header
- Low contact mating force
Applications
- Appliances
- HVAC Equipment
- Industrial Machinery
- Power Supplies
- Security Systems
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 12 A | |
| Grid | 3.96 mm | |
| Connection plating | pre-tinned | |
| Pin number | 5 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | solder connection | |
| Contact type | pin | |
| Rated voltage | 600 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
