2213738-2 | TE Connectivity

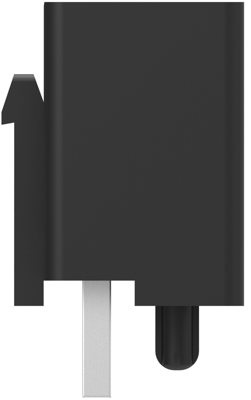

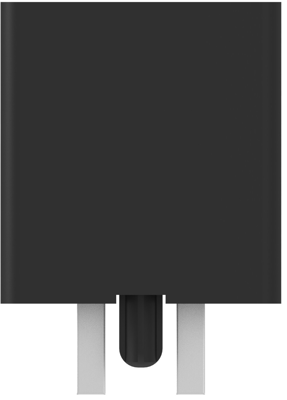

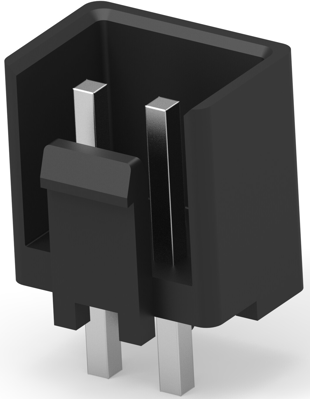

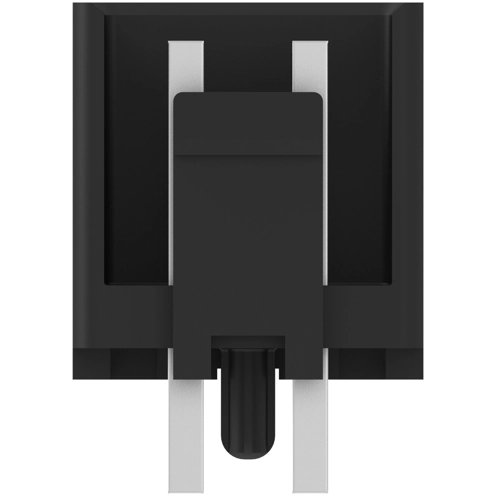

Pin header, 2 pole, pitch 3.96 mm, straight, black, 2213738-2
Unit Price (€ / pc.)
0.3927 € *
Available in 5 Days: 4,812 pcs. - if ordered today
Total Price:
0.39 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3927 €
10 pcs.
0.3689 €
25 pcs.
0.3451 €
50 pcs.
0.3082 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 2213738-2, TE Connectivity
The 213738-2 is a reflow capable power header that builds on a tested solution for wireto-board applications. This product thermoplastic housing is designed to withstand high temperatures associated with reflow soldering. This allows for easy transition to a full reflow assembly process.
Features
- Positive audible latching for error resistant assembly
- Shrouded header eliminates mismating due to alignment of the receptacle/header
- Low contact mating force
Applications
- Appliances
- HVAC Equipment
- Industrial Machinery
- Power Supplies
- Security Systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 12 A | |
| contact surface | tin-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | pin | |
| Connection plating | pre-tinned | |
| Grid | 3.96 mm | |
| Orientation | straight | |
| Rated voltage | 600 V | |
| Connection | solder connection | |
| Pin number | 2 pole | |
| Version | pin header | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
