2204748-4 | TE Connectivity

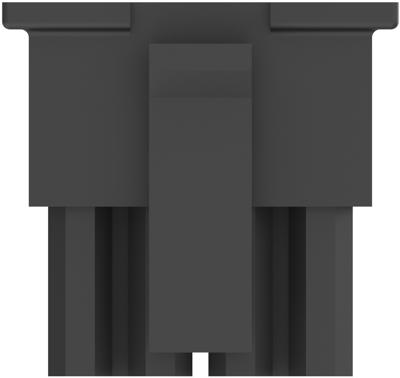

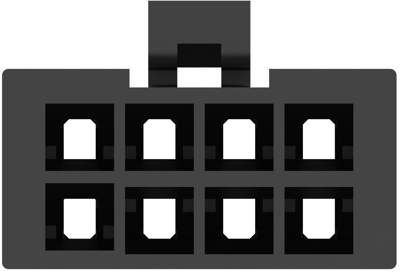

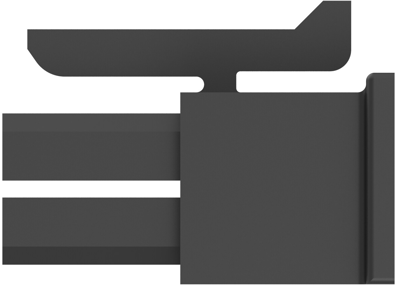

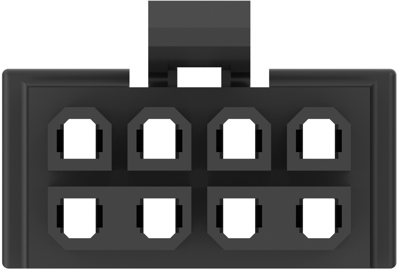

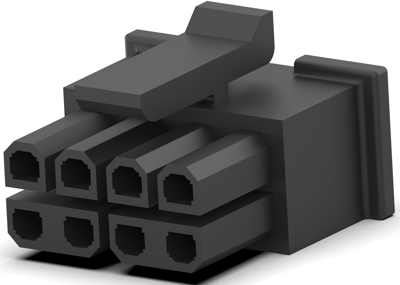

Socket housing, 8 pole, pitch 3 mm, straight, black, 2204748-4
Order No.: 71P5575
EAN: 4099891726737
MPN:
2204748-4
Unit Price (€ / pc.)
2.5347 € *
Available: 0 pcs.
Available in 5 Days: 12,549 pcs.
Leadtime: 15 Weeks **
Total Price:
2.53 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5347 €
10 pcs.
2.3086 €
50 pcs.
2.0706 €
100 pcs.
1.8683 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 2204748-4, TE Connectivity
The 2204748-4 provides a high current up to 12.5A per pin in the common industry footprint of 3.0 mm. This product in a compact design is useful for servers, switches, storage devices and testing machines.
Features
- Easy assembly with virtually fool-proof mating features
- Made with halogen-free material
Applications
- Switch/Routers
- Power supplies and distribution
- Security system
- Business retail equipment
- Diagnostic equipment
- Patient monitor
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 2 | |
| Version | Buchsengehäuse | |
| Colour | schwarz | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 600 V | |
| Rated current | 10.5 A | |
| Orientation | gerade | |
| Pin number | 8-polig | |
| Grid | 3 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
