2170330-1 | TE Connectivity

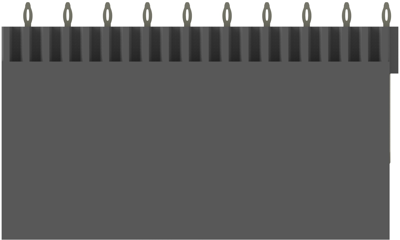

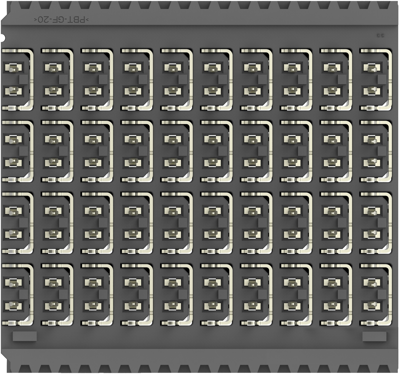

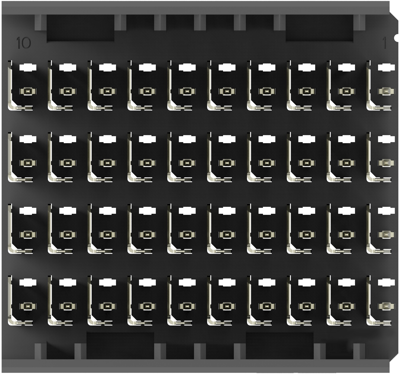

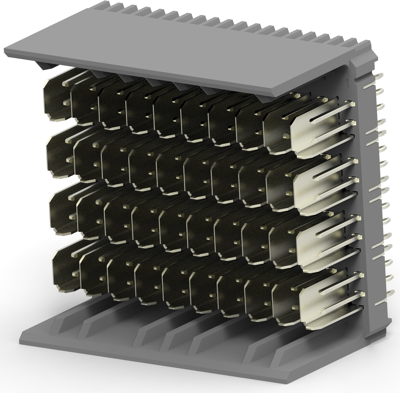

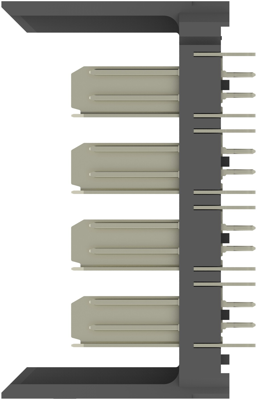

Pin header, 80 pole, pitch 2.5 mm, straight, black, 2170330-1
Unit Price (€ / pc.)
22.8361 € *
Available in 5 Days: 180 pcs. - if ordered today
PCB Connection System, 2170330-1, TE Connectivity
Board-to-Board, Printed Circuit Board, Vertical, 80 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Orientation: straight
- Number of positions: 80
- Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
- Rated current: 1.5 A
- Centerline (Pitch): 2.5 mm
- Row-to-Row Spacing: 1.5 mm [0.059 in]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Breakable | No | |
| contact surface | gold-plated | |
| Contact type | pin | |
| Connection | press-fit | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Number of rows | 8 | |
| Type of locking | No | |
| Pin number | 80 pole | |
| Additional parts | equipped | |
| Colour | black | |
| Version | pin header | |
| Rated current | 1.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
