213738-5 | TE Connectivity

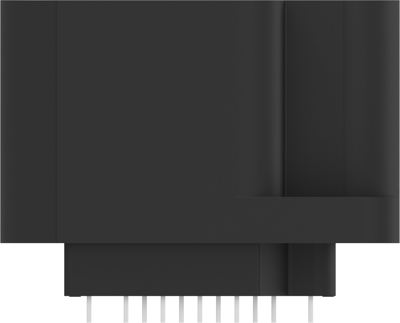

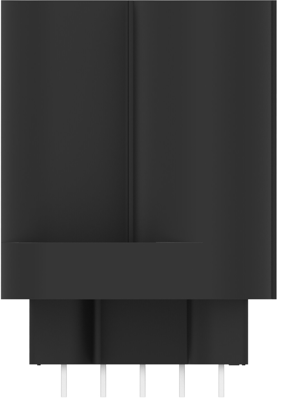

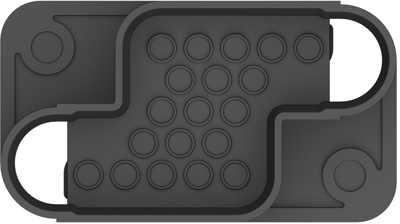

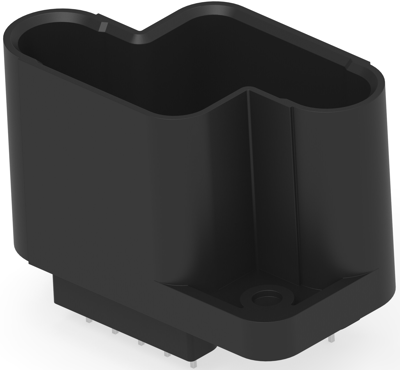

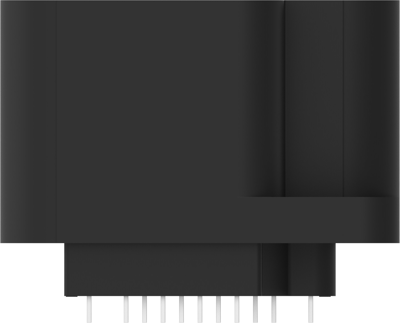

Pin header, 19 pole, pitch 3.96 mm, straight, black, 213738-5
Order No.: 39P1738
EAN: 4099889977240
MPN:
213738-5
Unit Price (€ / pc.)
54.7162 € *
Available in 5 Days: 1,113 pcs. - if ordered today
Total Price:
54.72 € *
Price list
Quantity
Price per unit*
1 pcs.
54.7162 €
2 pcs.
51.1938 €
5 pcs.
48.0879 €
10 pcs.
44.6964 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 213738-5, TE Connectivity
Wire-to-Board, Printed Circuit Board, Vertical, 19 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Polyester
- Housing Color: black
- Orientation: straight
- Number of positions: 19
- Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
- Rated current: 7.5 A
- Row-to-Row Spacing: 4.39 mm [0.173 in]
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 19 pole | |
| Grid | 3.96 mm | |
| Connection | PCB connection | |
| Orientation | straight | |
| Type of locking | No | |
| contact surface | pre-tinned | |
| Connection plating | pre-tinned | |
| Rated voltage | 600 V | |
| Rated current | 12 A | |
| Additional parts | equipped | |
| Number of rows | 5 | |
| Breakable | No | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
