2132230-2 | TE Connectivity

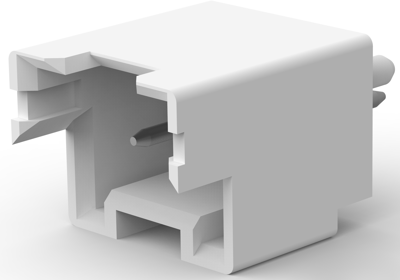

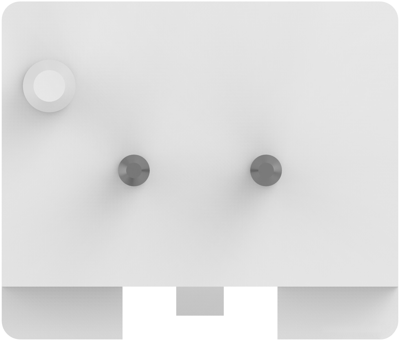

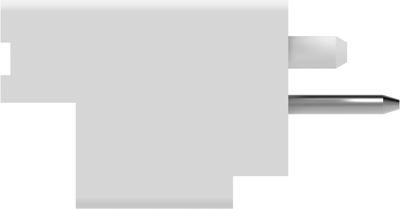

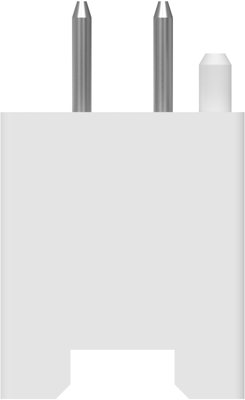

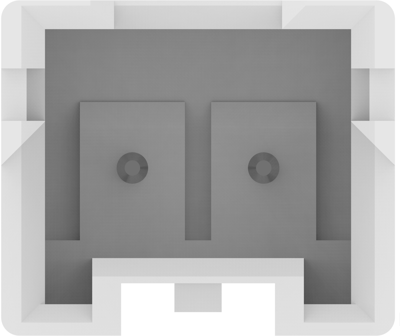

Pin header, 2 pole, pitch 2.5 mm, straight, white, 2132230-2
Unit Price (€ / pc.)
0.1083 € *
Available: 0 pcs.
Available in 5 Days: 71,304 pcs.
Leadtime: 1 Week **
Total Price:
0.11 € *
Price list
Quantity
Price per unit*
1200 pcs.
0.1083 €
4200 pcs.
0.1023 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 2132230-2, TE Connectivity
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 2 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: PBT GF
- Housing Color: white
- Orientation: straight
- Number of positions: 2
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 4.2 A
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | unequipped | |
| Breakable | No | |
| Colour | white | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 4.2 A | |
| Orientation | straight | |
| Pin number | 2 pole | |
| Grid | 2.5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
