2120325-1 | TE Connectivity

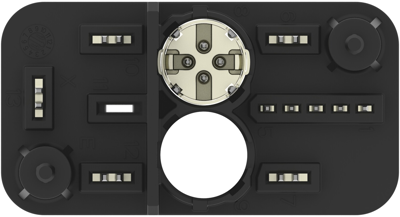

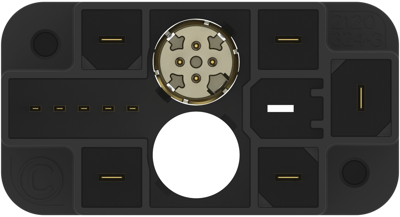

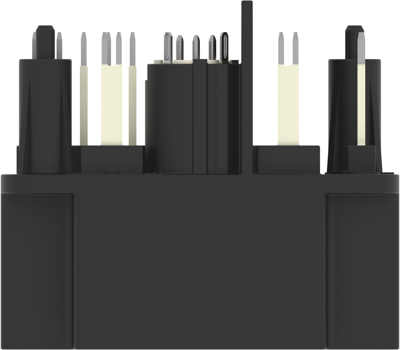

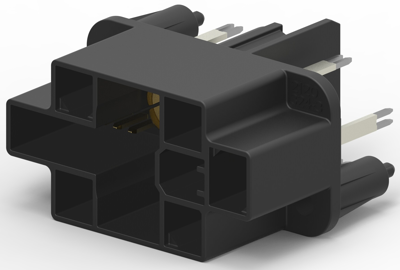

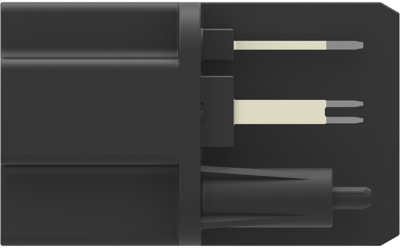

Plug housing, 19 pole, angled, black, 2120325-1
Order No.: 38P7863
EAN: 4099889976663
MPN:
2120325-1
Unit Price (€ / pc.)
50.8487 € *
Available in 5 Days: 137 pcs. - if ordered today
Total Price:
203.39 € *
Price list
Quantity
Price per unit*
4 pcs.
50.8487 €
10 pcs.
49.9205 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 2120325-1, TE Connectivity
Wire-to-Board, Wire-to-Motor, Printed Circuit Board, 19 Position
Technical Data
- Connector Mounting Type: Motor
- Contact Type: Male
- Housing Color: black
- Number of positions: 19
- Sealable: No
- Contact Layout: Staggered
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breakable | No | |
| Contact type | pin | |
| Connection | crimp connection | |
| Rated voltage | 900 V | |
| Orientation | angled | |
| Number of rows | 2 | |
| Type of locking | Yes | |
| Pin number | 19 pole | |
| Colour | black | |
| Version | plug housing | |
| Rated current | 20 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
