2110819-1 | TE Connectivity

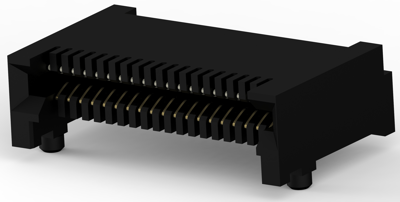

Connector, 38 pole, pitch 0.8 mm, angled, 2110819-1
Order No.: 37P1960
EAN: 4099889824254
MPN:
2110819-1
Unit Price (€ / pc.)
5.355 € *
Available: 0 pcs.
Available in 5 Days: 32,000 pcs.
Leadtime: 6 Weeks **
QSFP/QSFP+/zQSFP+, 2110819-1, TE Connectivity
Form Factor: QSFP+, Pluggable I/O Product Type: Cage Assembly, Connector System: Cable-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Number of Positions: 38, Data Rate (Max): 14 Gb/s, PCB Contact Termination Area Plating Material: Tin, Contact Current Rating (Max): .5 A, Termination Method to Printed Circuit Board: Surface Mount, Connector Mounting Type: Board Mount, Centerline (Pitch): .8 mm, PCB Thickness (Recommended): 1.45 mm, Operating Temperature Range: -55 – 105 °C, For Use With Pluggable I/O Products: QSFP+ Cage, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Reel,Tape
Technical specifications
| contact surface | gold-plated | |
| Rated current | 0.5 A | |
| Grid | 0.8 mm | |
| Pin number | 38 pole | |
| Version | connector | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | SMD | |
| Contact type | socket | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | SG |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
