2029150-5 | TE Connectivity

Pin header, 5 pole, pitch 4.2 mm, angled, natural, 2029150-5

Order No.: 35P5415
EAN: 4099889938401
MPN:
2029150-5

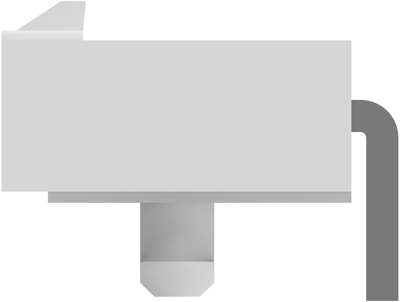

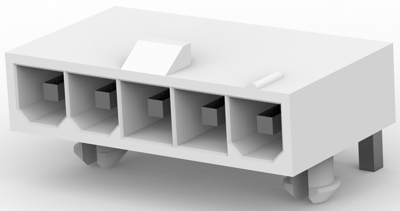

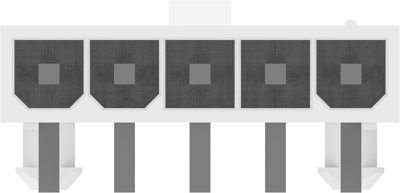

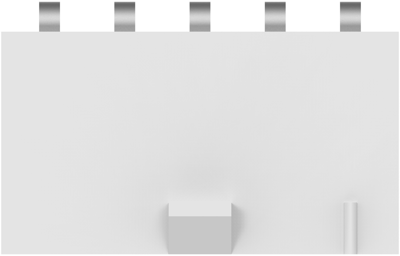

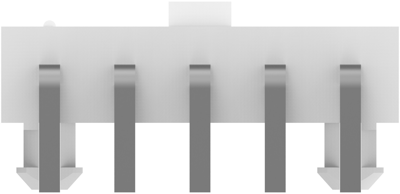

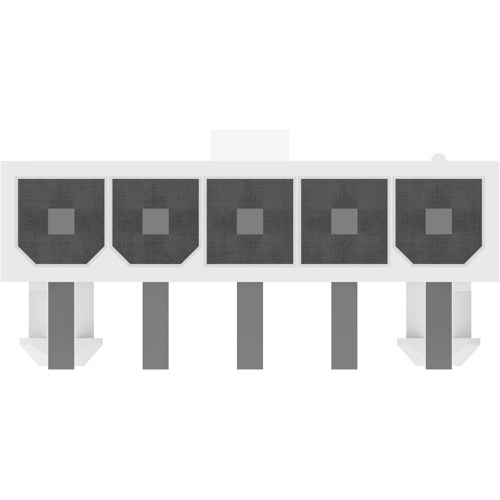

2029150-5 TE Connectivity PCB Connection Systems Image 1
2029150-5 TE Connectivity PCB Connection Systems Image 2
2029150-5 TE Connectivity PCB Connection Systems Image 3
2029150-5 TE Connectivity PCB Connection Systems Image 4
2029150-5 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7854 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
4,319.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
5500 pcs.
0.7854 €

PCB Connection System, 2029150-5, TE Connectivity

Wire-to-Board, Printed Circuit Board, Shrouded, Right Angle, 5 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: angled
  • Number of positions: 5
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 9 A
  • Centerline (Pitch): 4.2 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Version pin header
Contact type pin
Pin number 5 pole
Grid 4.2 mm
Connection PCB connection
Orientation angled
Type of locking Yes
contact surface tin-plated
Connection plating tin-plated
Rated voltage 600 V
Rated current 9 A
Additional parts equipped
Number of rows 1
Breakable No
Colour natural
Logistics
Country of origin TW
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
