2029111-3 | TE Connectivity

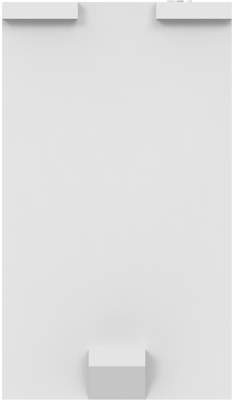

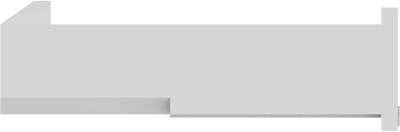

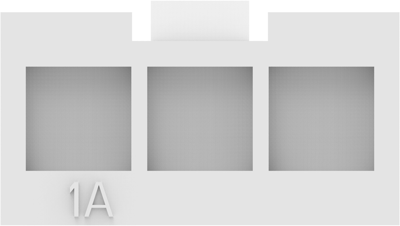

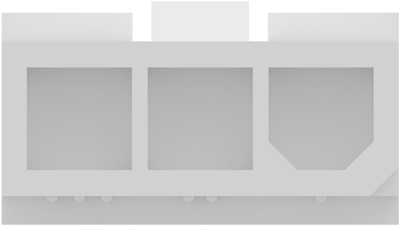

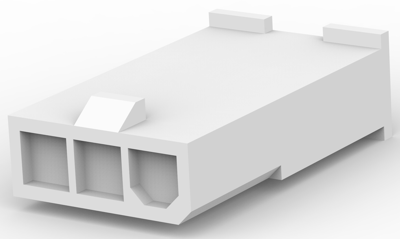

Plug housing, 3 pole, pitch 4.2 mm, straight, white, 2029111-3
Unit Price (€ / pc.)
0.5593 € *
Available in 5 Days: 16,009 pcs. - if ordered today
Total Price:
0.56 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5593 €
10 pcs.
0.5236 €
25 pcs.
0.4879 €
50 pcs.
0.4403 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 2029111-3, TE Connectivity
Wire-to-Wire, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Nylon 66
- Housing Color: white
- Number of positions: 3
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 4.2 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | white | |
| Additional parts | unequipped | |
| Contact type | pin | |
| Grid | 4.2 mm | |
| Orientation | straight | |
| Rated voltage | 600 V | |
| Connection | crimp connection | |
| Breakable | No | |
| Pin number | 3 pole | |
| Version | plug housing | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
