2029058-5 | TE Connectivity

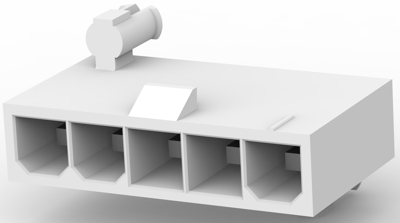

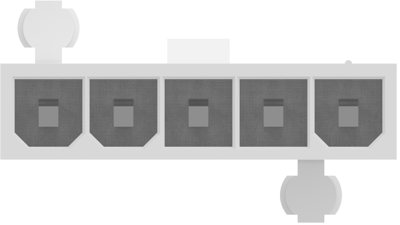

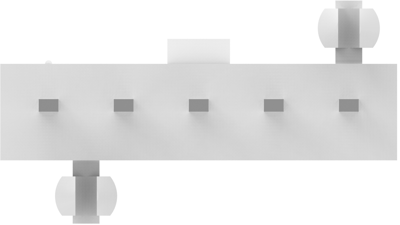

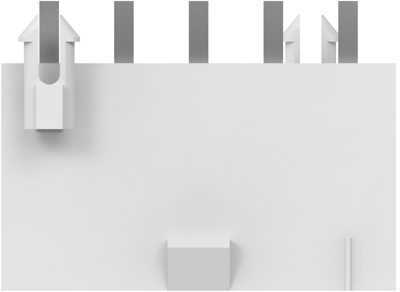

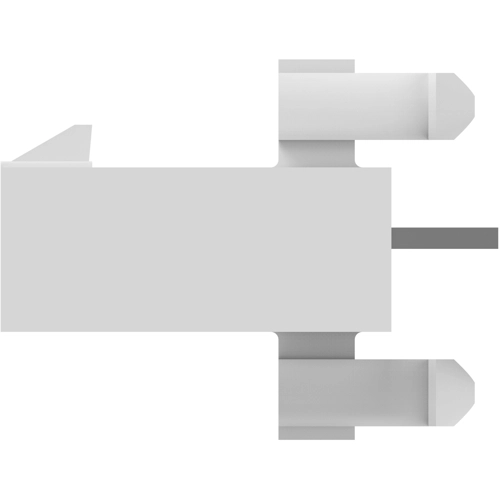

Pin header, 5 pole, pitch 4.2 mm, straight, natural, 2029058-5
Order No.: 71P4494
EAN: 4099891724245
MPN:
2029058-5
Unit Price (€ / pc.)
0.7735 € *
Available in 5 Days: 5,999 pcs. - if ordered today
Total Price:
0.77 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7735 €
10 pcs.
0.7259 €
25 pcs.
0.6783 €
50 pcs.
0.6188 €
*incl. VAT plus shipping costs
Subject to prior sale
Single row header connector, 2029058-5, TE Connectivity
Rectangular power connector, Header, Plug, Wire-to-Board, 5 Position, 4.2 mm Centerline, Printed circuit board, UL 94V-2.
Features
- Right angle and vertical configurations
- Mates to existing receptacle housings
Applications
- Household appliances
- HVAC
- Vending
- Gaming
- Lighting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 9 A | |
| contact surface | tin-plated | |
| Colour | natural | |
| Additional parts | equipped | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| Grid | 4.2 mm | |
| Orientation | straight | |
| Rated voltage | 600 V | |
| Connection | solder connection | |
| Pin number | 5 pole | |
| Version | pin header | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
