2029056-4 | TE Connectivity

Pin header, 4 pole, pitch 4.2 mm, straight, natural, 2029056-4

Order No.: 35P5408
EAN: 4099889938364
MPN:
2029056-4
Series: VAL-U-LOK

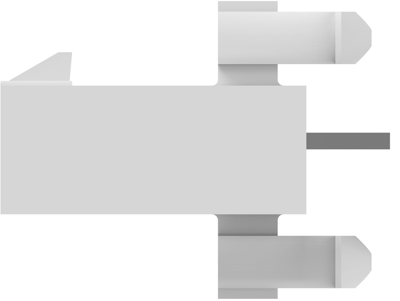

2029056-4 TE Connectivity PCB Connection Systems Image 1

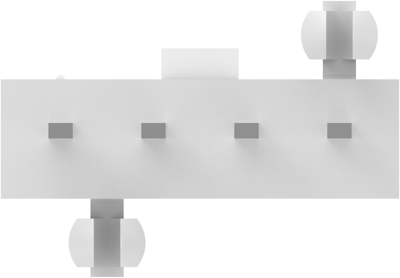

2029056-4 TE Connectivity PCB Connection Systems Image 2

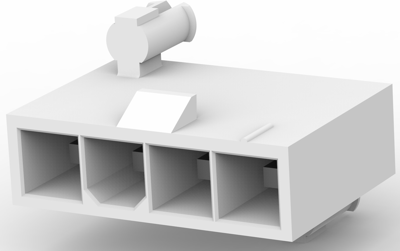

2029056-4 TE Connectivity PCB Connection Systems Image 3

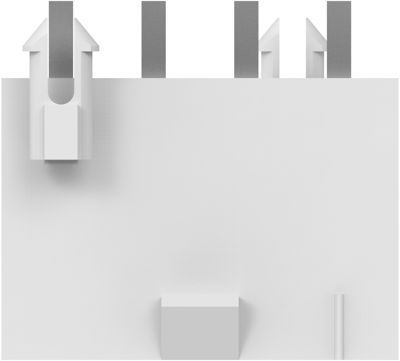

2029056-4 TE Connectivity PCB Connection Systems Image 4

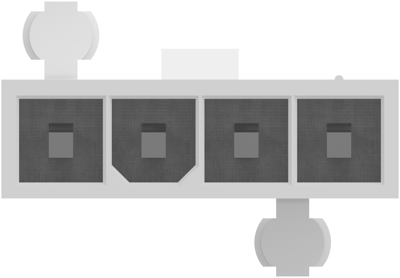

2029056-4 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4879 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
5,854.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
12000 pcs.
0.4879 €

PCB Connection System, 2029056-4, TE Connectivity

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 4 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 4
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 9 A
  • Centerline (Pitch): 4.2 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Version pin header
Contact type pin
Pin number 4 pole
Grid 4.2 mm
Connection PCB connection
Orientation straight
Type of locking Yes
contact surface tin-plated
Connection plating tin-plated
Rated voltage 600 V
Rated current 9 A
Additional parts equipped
Number of rows 1
Breakable No
Colour natural
Logistics
Country of origin TW
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
