2007705-1 | TE Connectivity

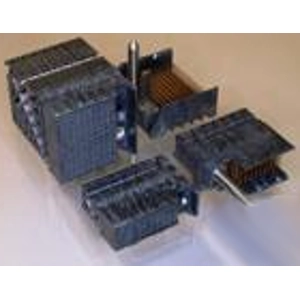

Socket header, 90 pole, pitch 1.9 mm, angled, black, 2007705-1
Order No.: 36P9091
EAN: 4099889949278
MPN:
2007705-1
Unit Price (€ / pc.)
13.0424 € *
Available: 0 pcs.
Available in 5 Days: 271 pcs.
Leadtime: 1 Week **
Total Price:
13.04 € *
Price list
Quantity
Price per unit*
26 pcs.
13.0424 €
52 pcs.
12.2808 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 2007705-1, TE Connectivity
Board-to-Board, Printed Circuit Board, Right Angle, 90 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: LCP - GF (Liquid Crystal Polymer)
- Housing Color: black
- Orientation: angled
- Number of positions: 90
- Operating Temperature Range: -55 – 85 °C [-67 – 185 °F]
- Rated current: 0.75 A
- Centerline (Pitch): 1.9 mm
- Row-to-Row Spacing: 1.35 mm [0.053 in]
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | press-fit | |
| Connection plating | tin-plated | |
| Number of rows | 9 | |
| Version | socket header | |
| Additional parts | unequipped | |
| Breakable | No | |
| Colour | black | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Rated voltage | 150 V | |
| Rated current | 0.75 A | |
| Orientation | angled | |
| Pin number | 90 pole | |
| Grid | 1.9 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
