2005250-6 | TE Connectivity

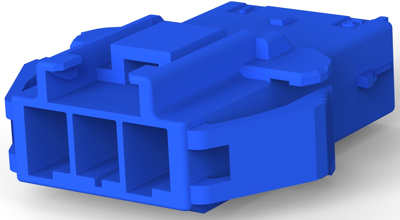

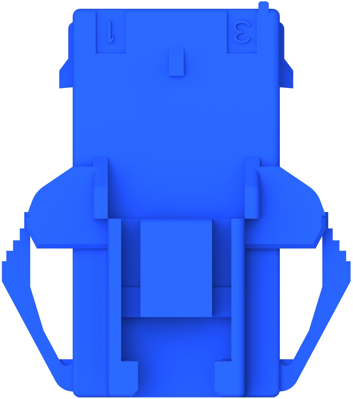

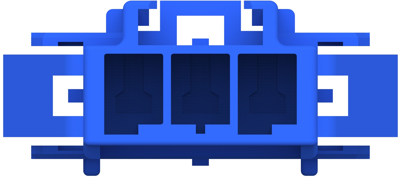

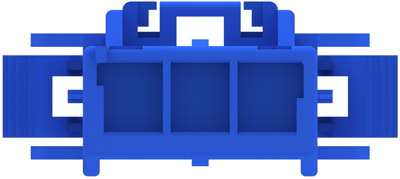

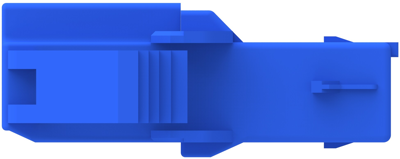

Socket housing, 3 pole, pitch 3.96 mm, straight, blue, 2005250-6
Order No.: 34P6145
EAN: 4099889910667
MPN:
2005250-6
Unit Price (€ / pc.)
0.2404 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
1.20 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2404 €
10 pcs.
0.2225 €
25 pcs.
0.2071 €
50 pcs.
0.1880 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 2005250-6, TE Connectivity
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: PA 66
- Housing Color: blue
- Number of positions: 3
- Operating Temperature Range: -30 – 65 °C [-22 – 149 °F]
- Centerline (Pitch): 3.96 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.96 mm | |
| Breakable | No | |
| Contact type | tab | |
| Version | socket housing | |
| Rated voltage | 300 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | blue | |
| Pin number | 3 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
