2005250-1 | TE Connectivity

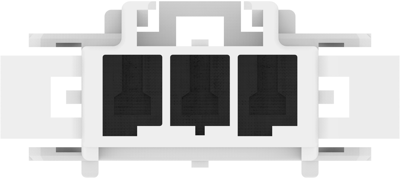

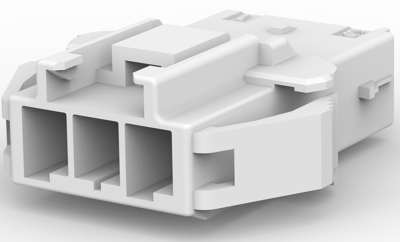

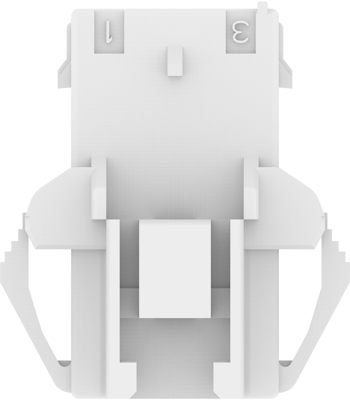

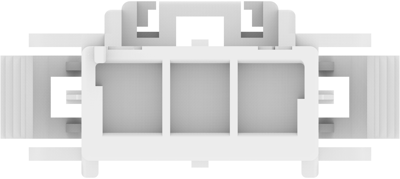

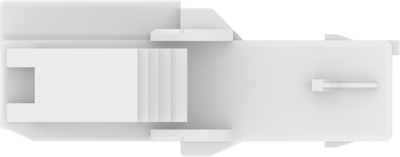

Socket housing, 3 pole, pitch 3.96 mm, straight, natural, 2005250-1
Order No.: 34P6146
EAN: 4099889910674
MPN:
2005250-1
Unit Price (€ / pc.)
0.5831 € *
Available in 5 Days: 27,600 pcs. - if ordered today
Total Price:
2.92 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5831 €
10 pcs.
0.5355 €
25 pcs.
0.4998 €
50 pcs.
0.4522 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 2005250-1, TE Connectivity
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: PA 66
- Housing Color: natural
- Number of positions: 3
- Operating Temperature Range: -30 – 65 °C [-22 – 149 °F]
- Centerline (Pitch): 3.96 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.96 mm | |
| Breakable | No | |
| Contact type | tab | |
| Version | socket housing | |
| Rated voltage | 300 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 3 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
