2005249-9 | TE Connectivity

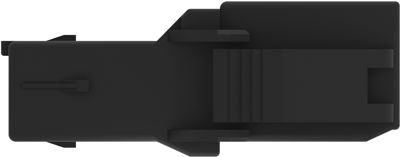

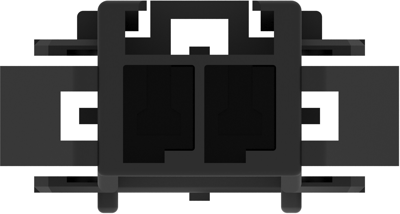

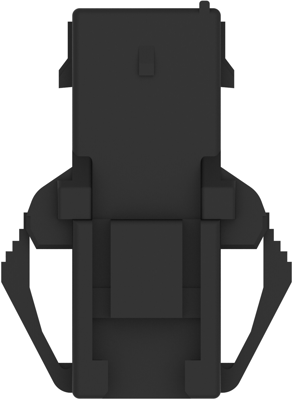

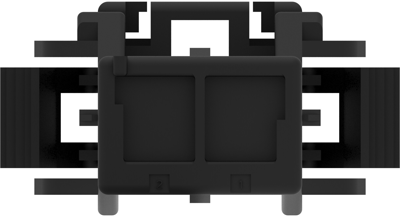

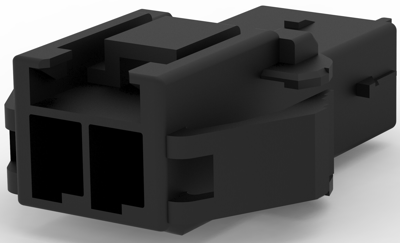

Socket housing, 2 pole, pitch 3.96 mm, straight, black, 2005249-9
Order No.: 34P6135
EAN: 4099889910575
MPN:
2005249-9
Unit Price (€ / pc.)
0.4046 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
0.40 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4046 €
10 pcs.
0.3689 €
25 pcs.
0.3451 €
50 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 2005249-9, TE Connectivity
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: PA 66
- Housing Color: black
- Number of positions: 2
- Operating Temperature Range: -30 – 65 °C [-22 – 149 °F]
- Centerline (Pitch): 3.96 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Connection | crimp connection | |
| Rated voltage | 300 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Breakable | No | |
| Version | socket housing | |
| Pin number | 2 pole | |
| Contact type | tab | |
| Grid | 3.96 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
