2005249-4 | TE Connectivity

Socket housing, 2 pole, pitch 3.96 mm, straight, yellow, 2005249-4

Order No.: 34P6139
EAN: 4099889910612
MPN:
2005249-4

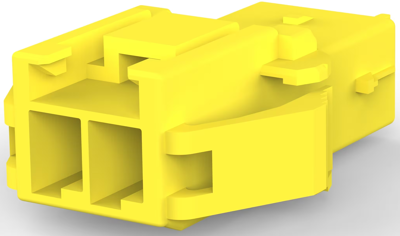

2005249-4 TE Connectivity PCB Connection Systems Image 1

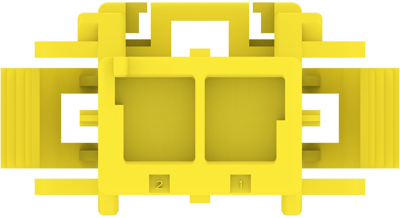

2005249-4 TE Connectivity PCB Connection Systems Image 2

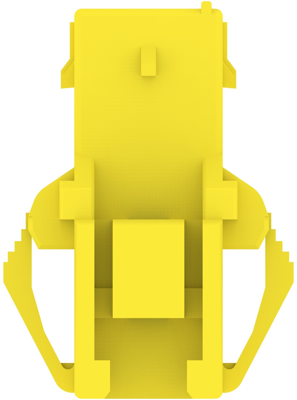

2005249-4 TE Connectivity PCB Connection Systems Image 3

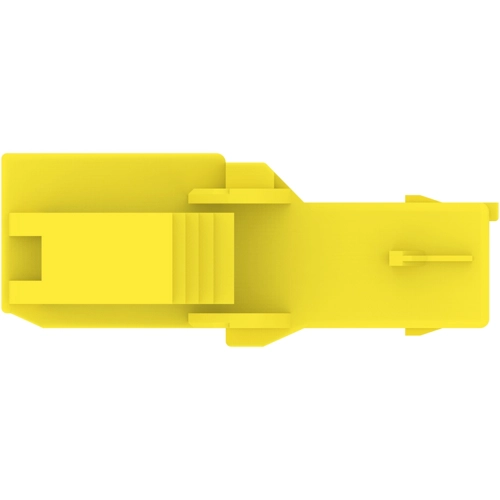

2005249-4 TE Connectivity PCB Connection Systems Image 4
2005249-4 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2237 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
2.24 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2237 €
50 pcs.
0.2071 €
100 pcs.
0.1928 €
250 pcs.
0.1749 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 2005249-4, TE Connectivity

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: PA 66
  • Housing Color: yellow
  • Number of positions: 2
  • Operating Temperature Range: -30 – 65 °C [-22 – 149 °F]
  • Centerline (Pitch): 3.96 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Breakable No
Grid 3.96 mm
Orientation straight
Connection crimp connection
Contact type tab
Additional parts unequipped
Version socket housing
Pin number 2 pole
Type of locking Yes
Number of rows 1
Colour yellow
Rated voltage 300 V
Logistics
Property Value
Country of origin TW
Customs tariff number 85389091
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
